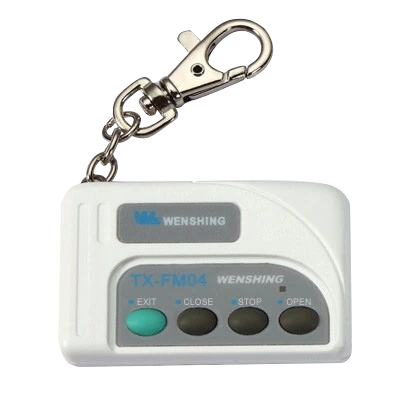

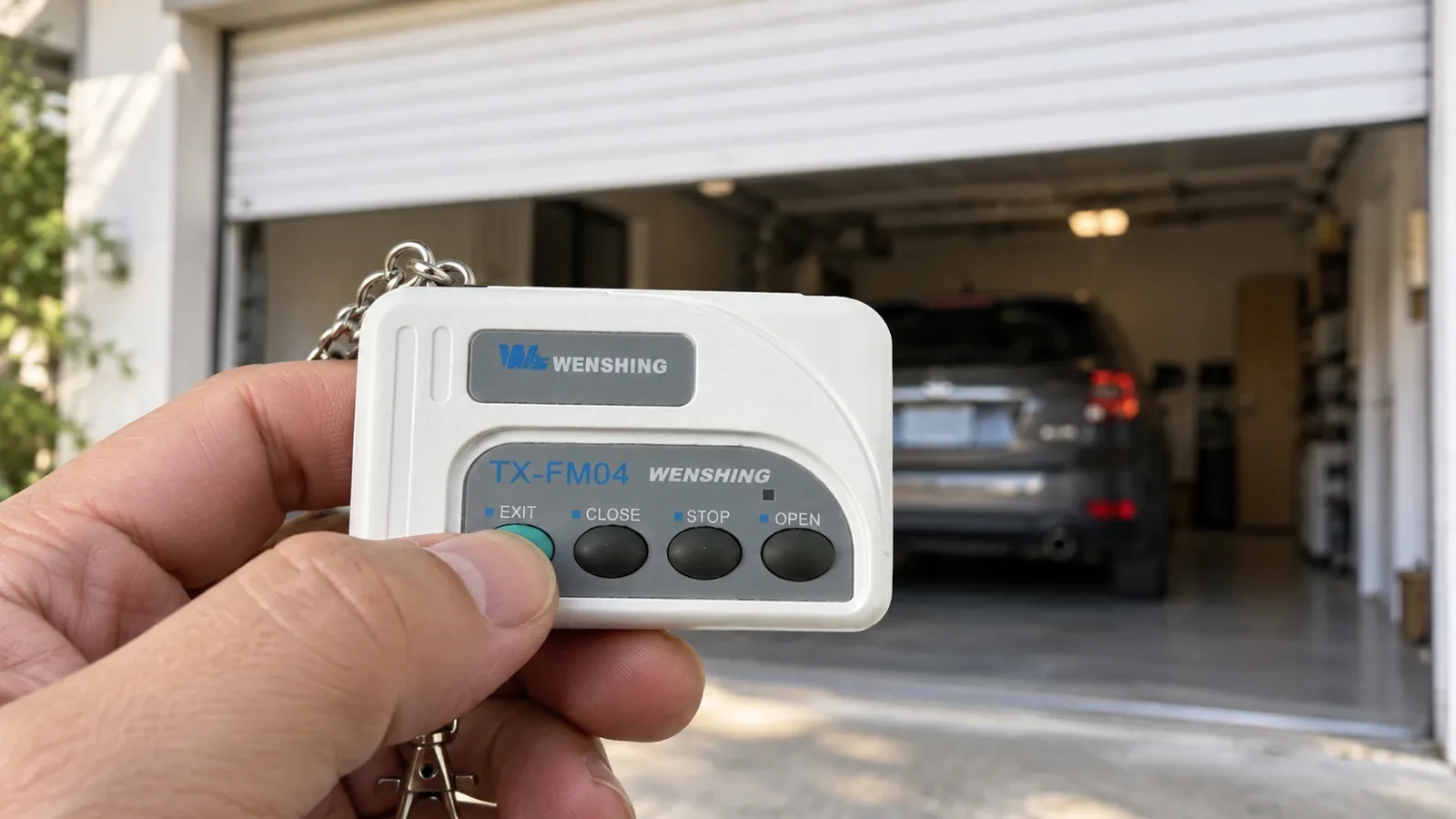

APPEARANCE
產品外觀
FEATURES
產品特色
SPECIFICATION
產品規格
頻率：433.92MHz
工作電壓：4～12V
輸出功率：8dBm

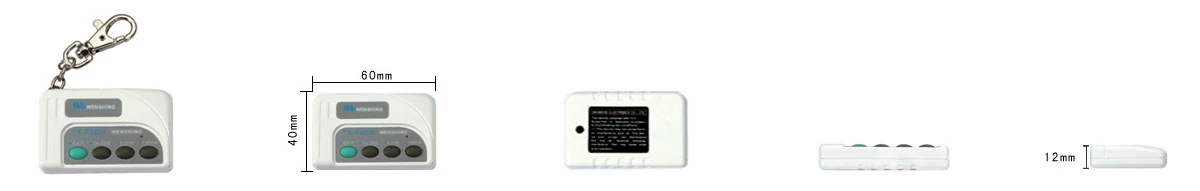

尺寸：60*40*12mm
電池：23A/DC12V
按鍵：4按鍵
採用SAW RESONATOR，精準不頻偏。
搭配控制主機、遙控升降機，可控制至地下四層樓。

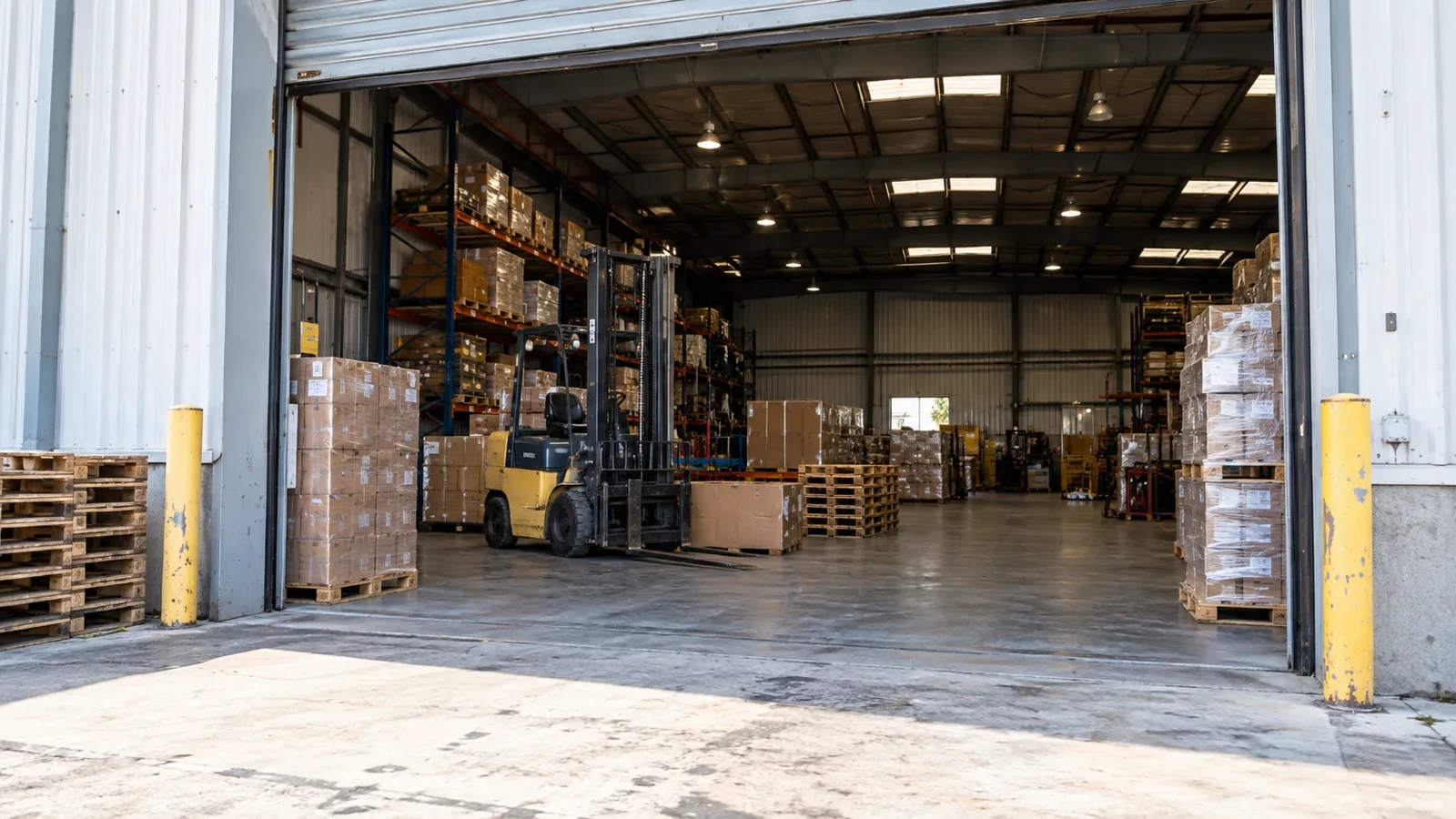

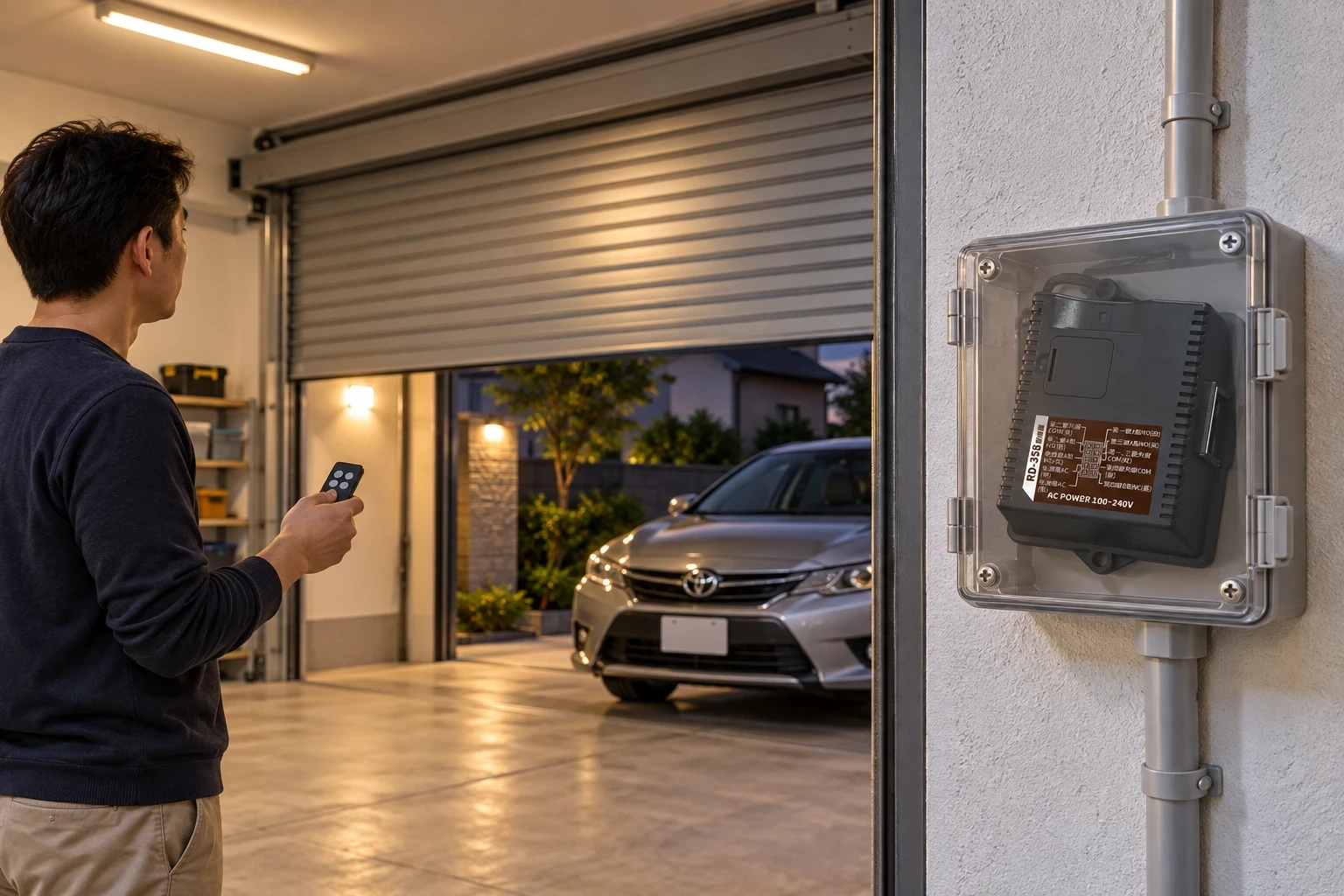

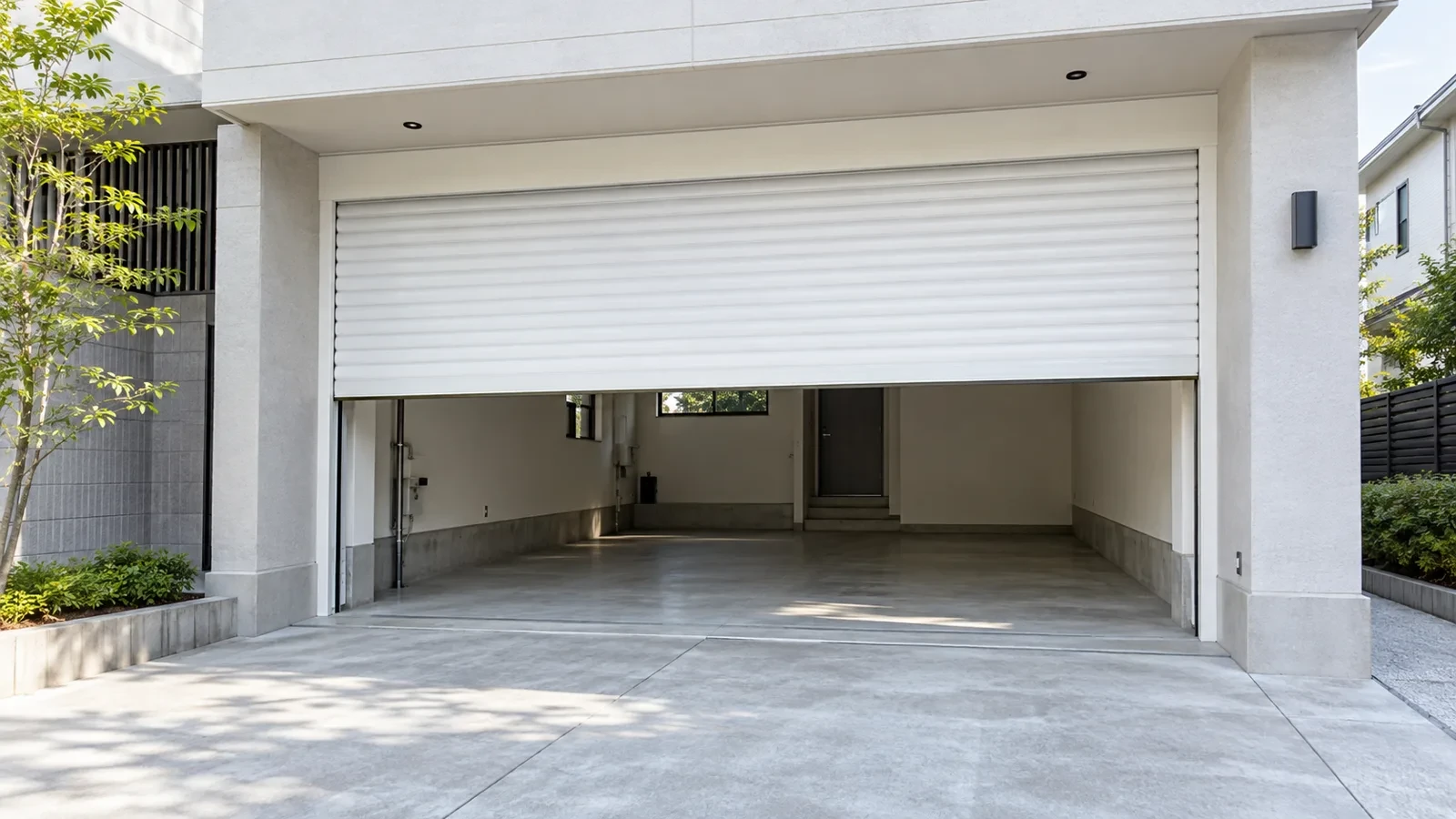

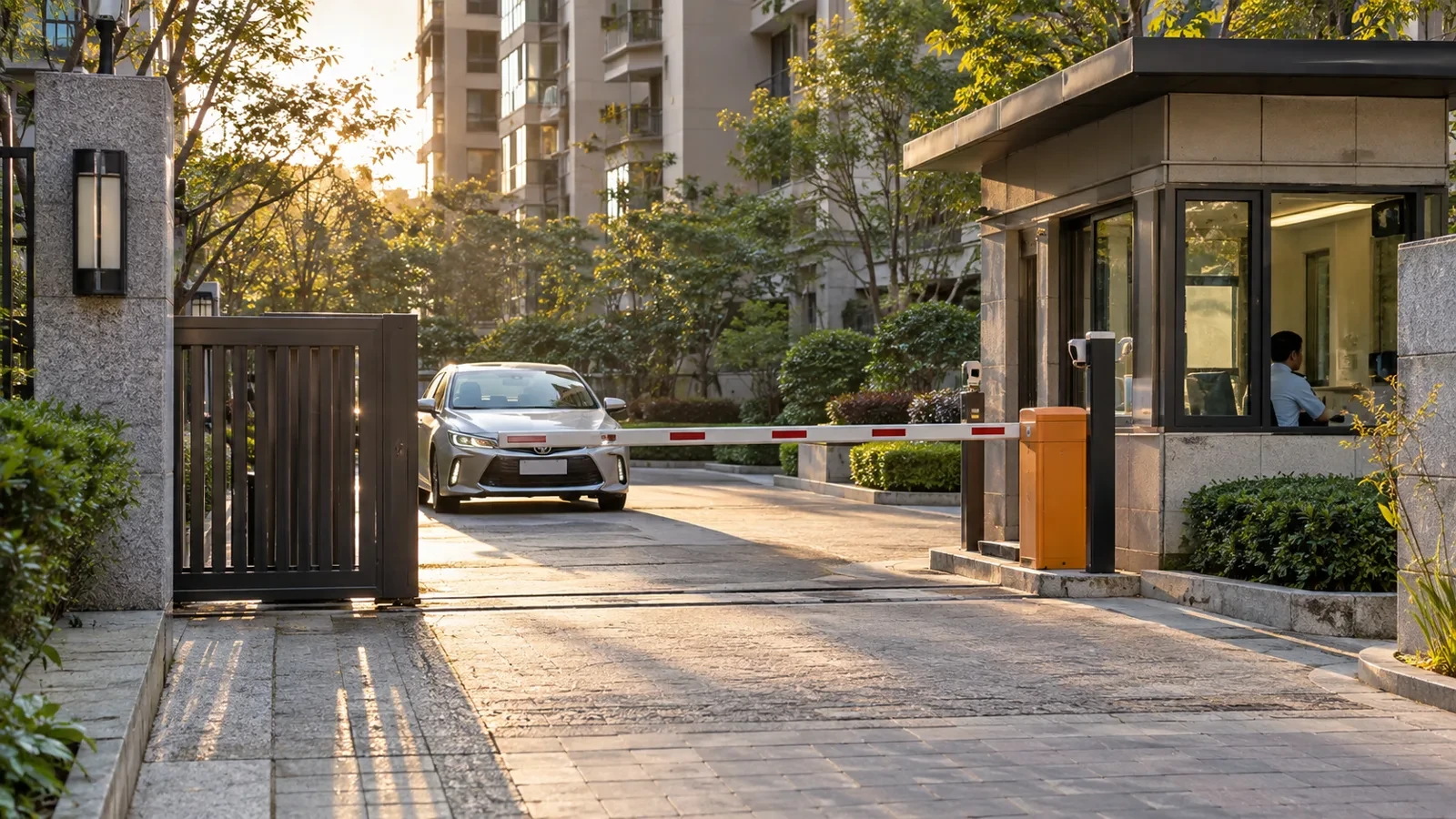

用途：車庫遙控、汽車防盜、中央門控、自動門控制、電鎖…等。
| Material | Specification | Color |
| Casing | ABS | Black |
| Button | 4 | Orange |
| Battery | DC 12V, 23A | ----- |
| Size | 60*40*12mm | ----- |
Push the button "ON", it will be opened. |
Push the button "CLOSE", it will be closed. |
Push the button"STOP", it will be stopped. |
Push the button "EXIT", the other three buttons will be locked. But push the button again, the other three buttons will be unlocked. |
