Home > Products > Intelligent Control> AI Smart Light Switch > 10.525G Smart Microwave
Touch Switch

10.525G Smart Microwave
Touch Switch

Model:
WS-RADAR10G

Smart Microwave Touch Switch

adopts 10.525G microwave sensing technology,

which can penetrate non-metallic materials,

and the sensing distance can be set from 3~12 meters.

To save energy, the product can be set to automatically turn off

the sensing function during the day.

When the ambient light source is strong,

the microwave sensing function will automatically turn off to save energy.

10.525G Smart Microwave Touch Switch possesses the following functions:

• Adjustable microwave sensing distance: The sensing distance can be set according to actual needs, with a maximum range of up to 12 meters.

• Adjustable automatic lighting duration: The duration for which the light remains on after no motion is detected within the detection range can be set, with a maximum duration of 15 minutes.

• Automatic detection of ambient light sources: In the case of light sources present when the light is off, the microwave sensing light function automatically turns off to save energy.

• Automatic switching to manual lighting mode: Manually turning on the light disables the automatic light-off function.

• • Single Live wire control: Existing light switches do not require an additional Neutral wire to be turned *** smart switches. They can be operated by connecting only to the Live wire, facilitating installation.

• Ultra-low power consumption: Extremely low power consumption, using less than one kWh of electricity per year, making it energy-efficient and environmentally friendly.





Product Advantages





Product Features




Microwave Sensing Distance Adjustable

This product utilizes 10.525G microwave sensing technology, which can penetrate non-metallic materials. The sensing distance can be set between 3 to 12 meters. A larger sensing distance results in a wider sensing range.



Configurable Automatic Lighting Time

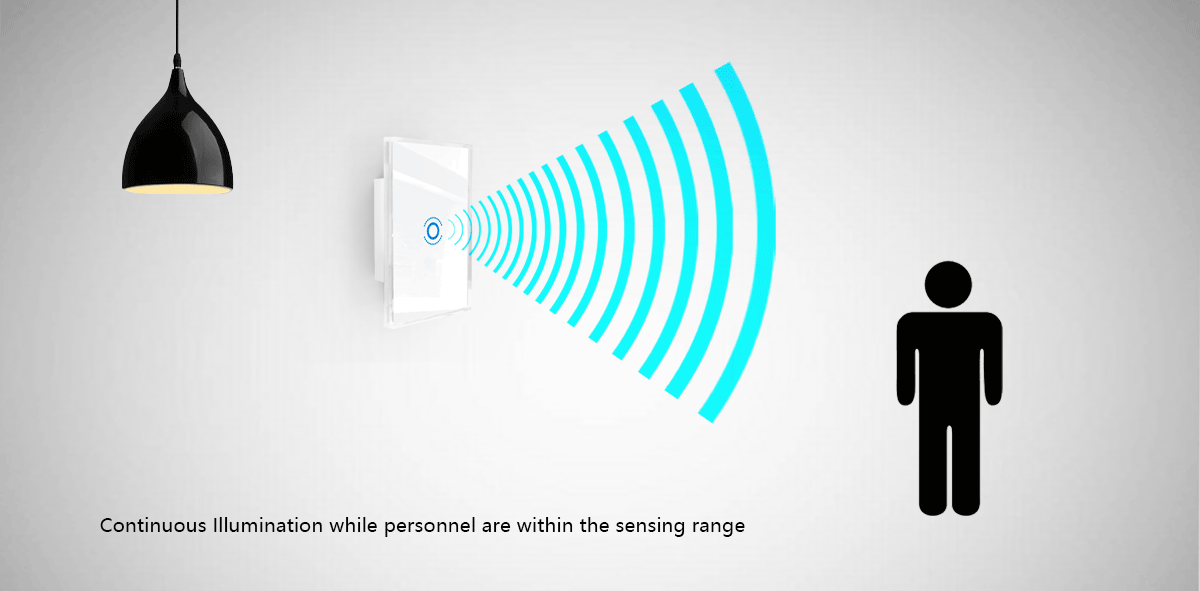

When someone enters the sensing range, the 10.525G Smart Microwave Motion Sensor Switch automatically turns on the light. The lighting duration can be set between 1minutes/5minutes/10minutes. During this period, if there is no motion detected within the sensing range, the light will automatically turn off. However, if motion is detected, the detection time will be recalculated.



Automatic Light Source Detection

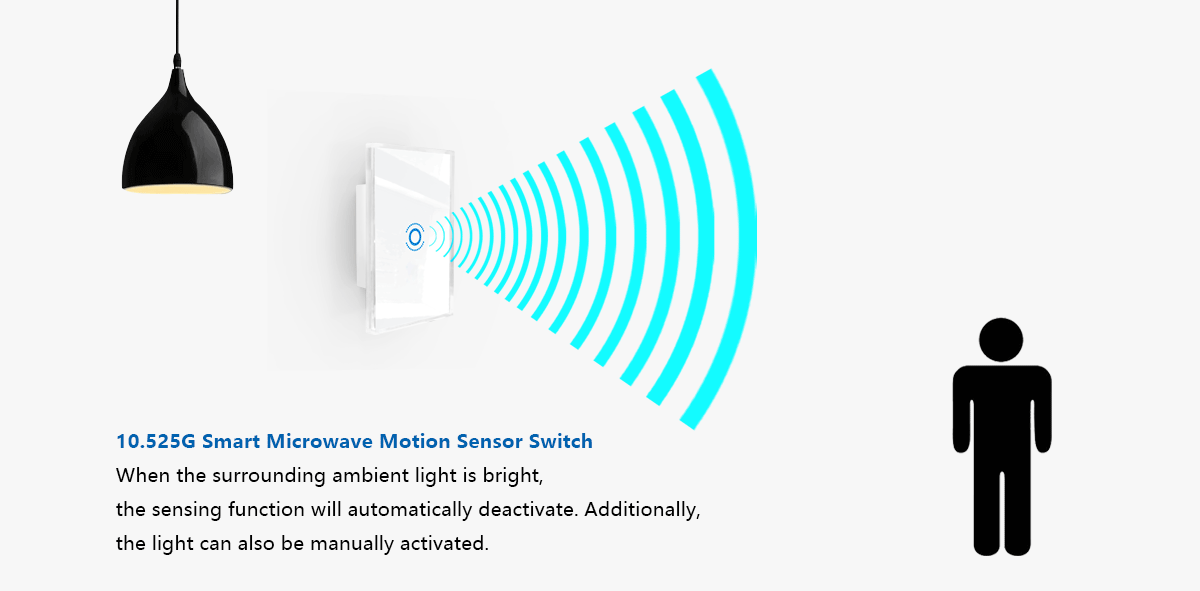

To save energy, the 10.525G Smart Microwave Motion Sensor Switch can be set to automatically disable the motion sensing function during the day. When the ambient light is strong, the microwave sensing function will automatically turn off to conserve energy.

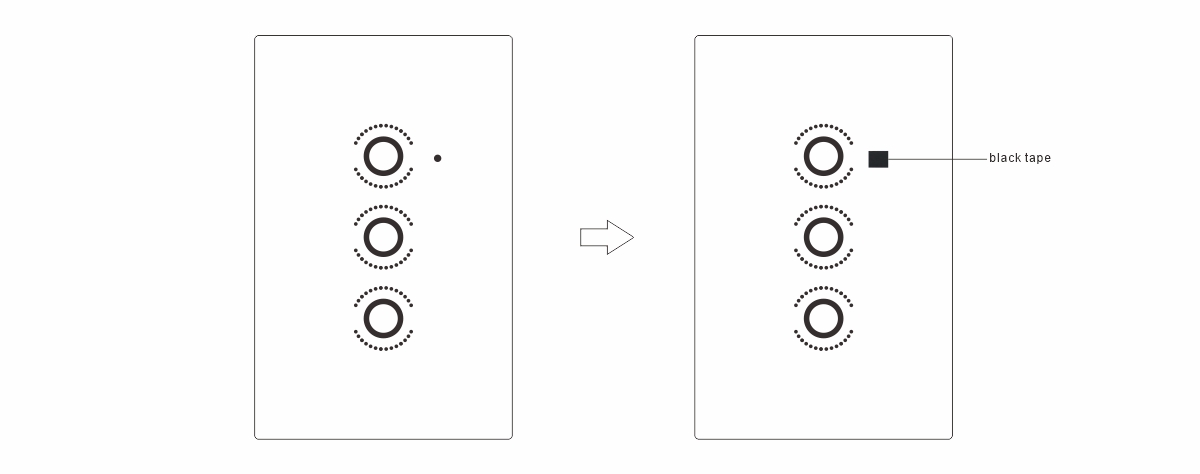

Note: The motion sensing light function will automatically turn off when there is sunlight during the day (if you need to perform this step, please remove the panel of this product first, and use black tape to cover the small dot on the back of the panel).


Automatic Switching to Light-off Mode

The 10.525G Smart Microwave Motion Sensor Switch not only supports automatic motion sensing for turning on the light but also allows manual light control. Once the light is manually turned on, the automatic light-off function will be deactivated.

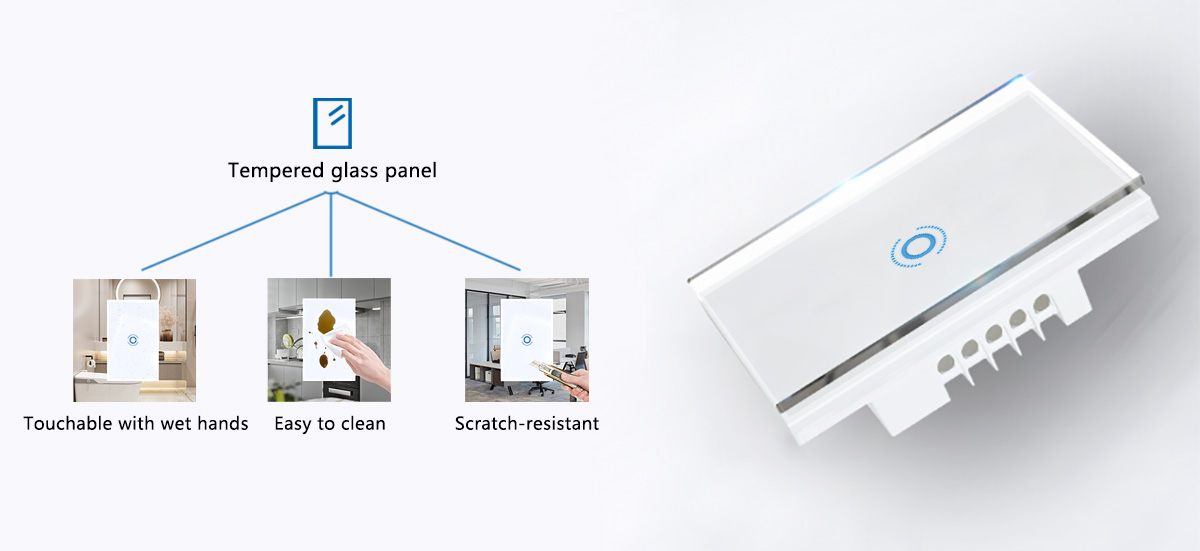

Tempered Glass Panel

The 10.525G Smart Microwave Motion Sensor Switch features high-hardness tempered glass, which is scratch-resistant, resistant to dust adhesion, and easy to clean. Just a gentle wipe leaves it shining bright like new.



Diverse Choices

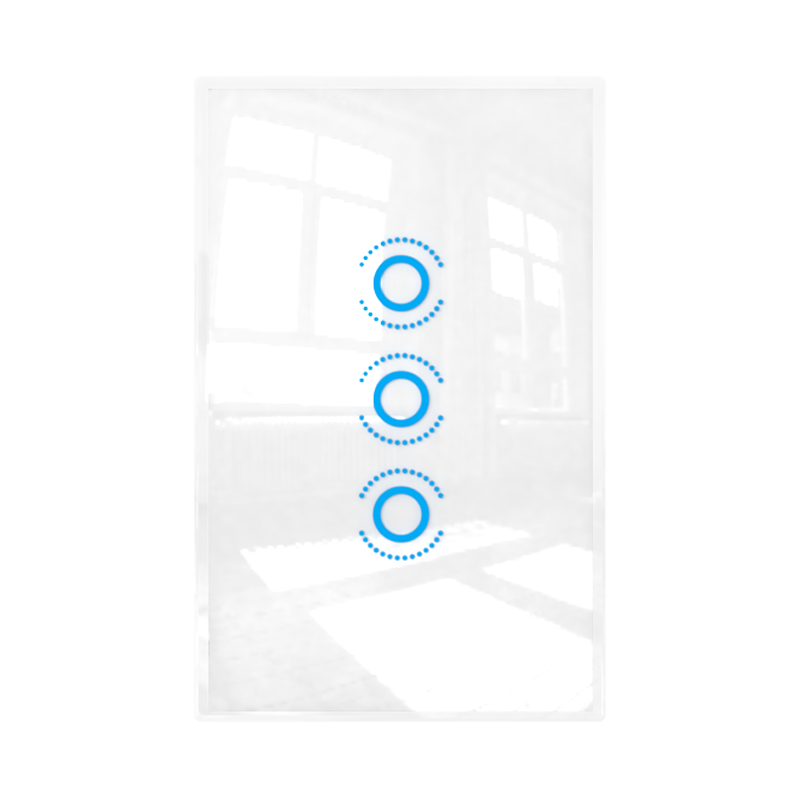

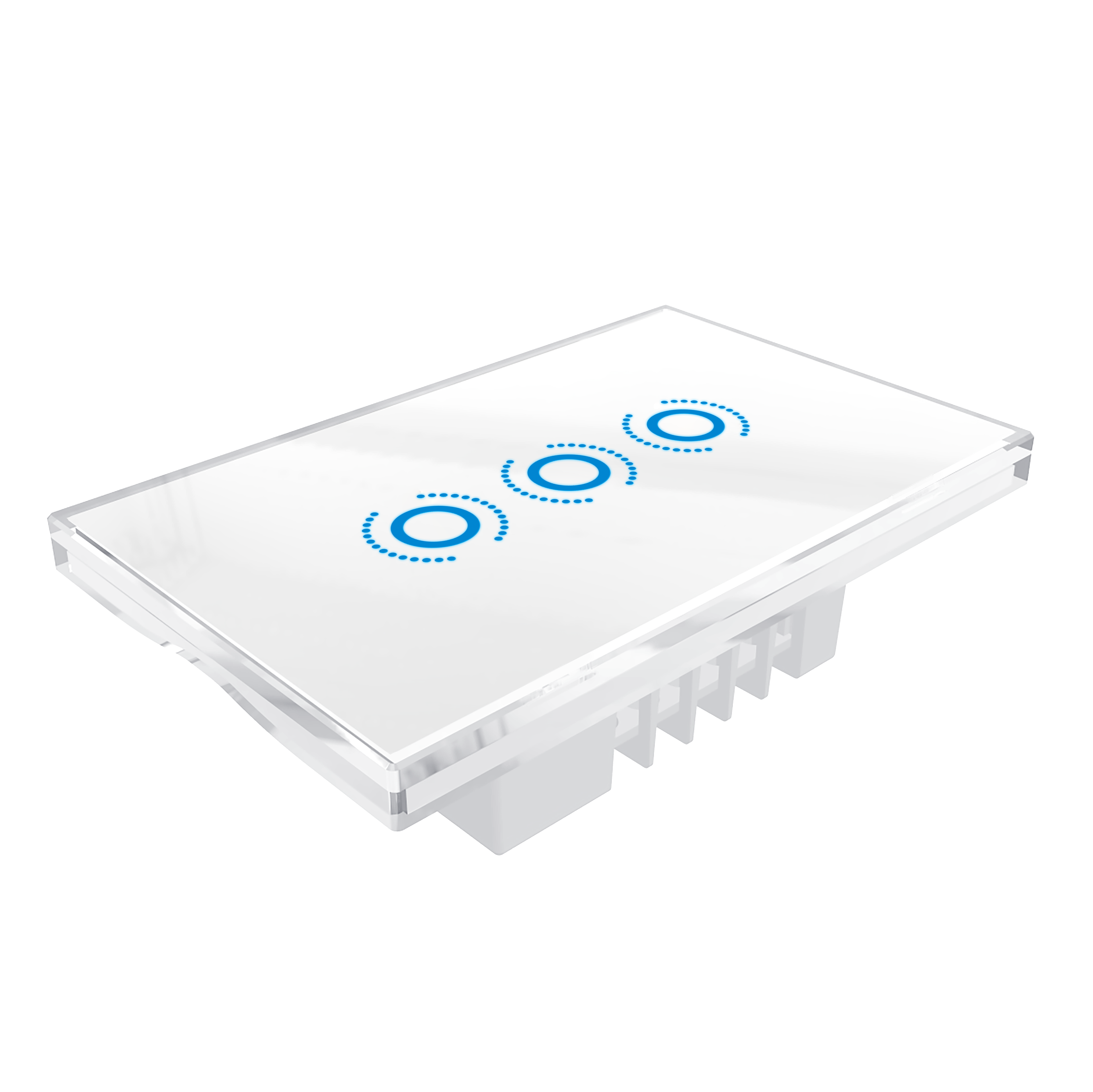

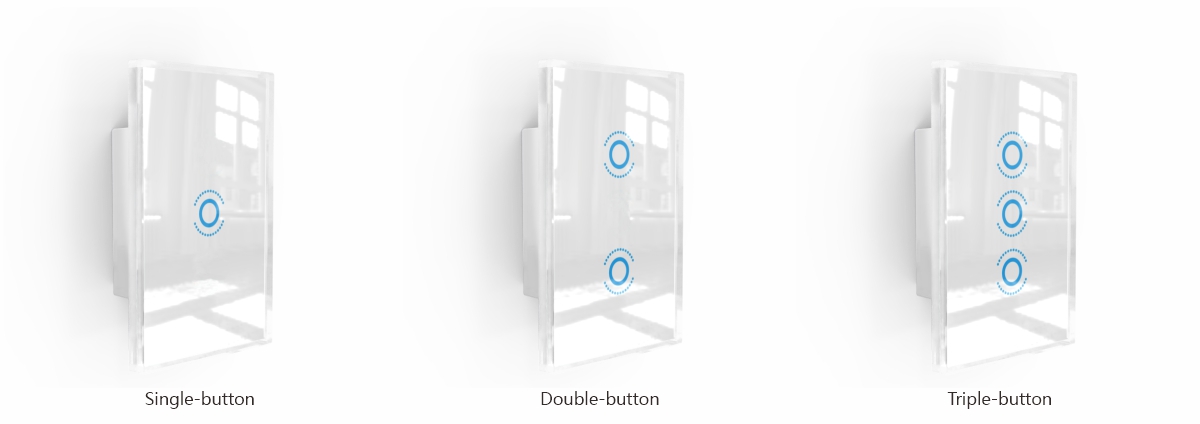

This product is available in Single-button, Double-button, and Triple-button switches. Depending on users' needs, they can choose to control different lights or lighting groups, making it versatile for various settings.



Touch Switch

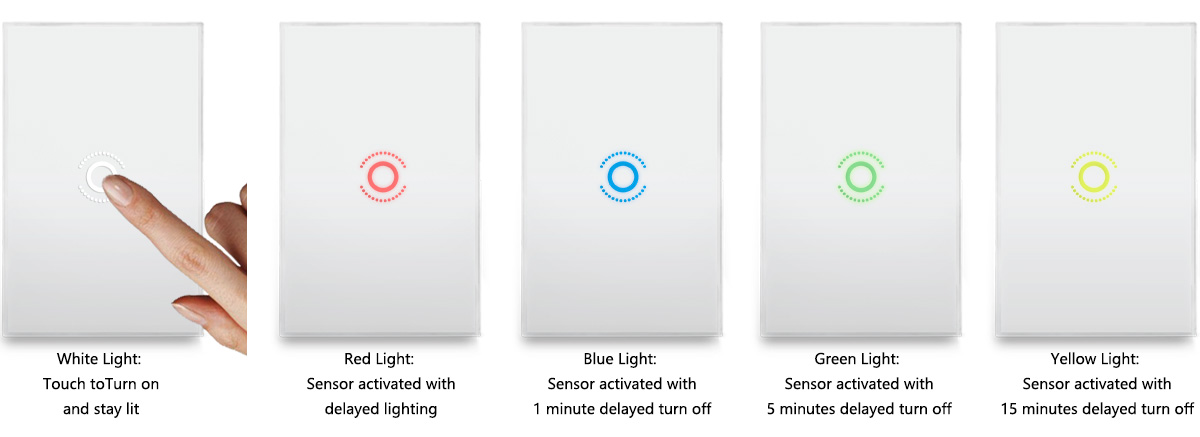

The smart microwave motion sensor switch is designed with a touch switch feature, allowing users to control the lights with a gentle touch. Equipped with full-color indicator lights, it can display different colors based on different functions, making it easy for users to intuitively understand the switch status.




Single-Wire Fire Line Control

The 10.525G Smart Microwave Sensor Switch only requires connection to the fire line for operation, eliminating the need for an additional neutral wire. It can easily replace existing traditional light switches without the need for rewiring or renovation.



Ultra-Low Power Consumption

The 10.525G Smart Microwave Sensor Switch is designed with ultra-low power consumption, using less than one kWh of electricity per year, making it energy-efficient and environmentally friendly.

/upload/202404071740616656.jpg

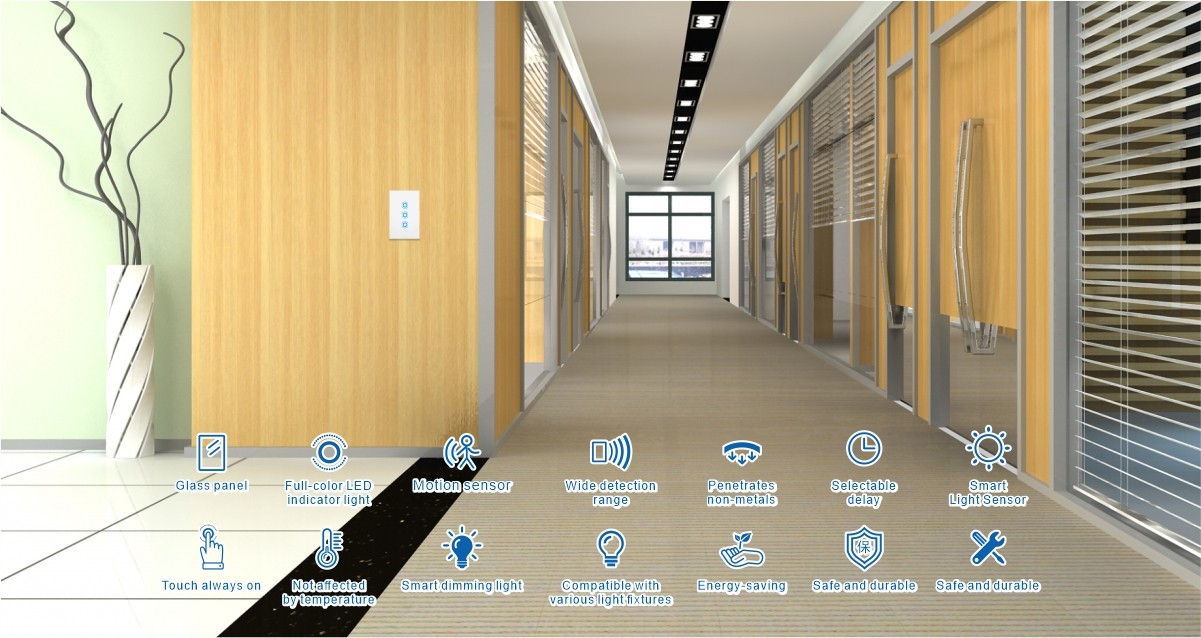

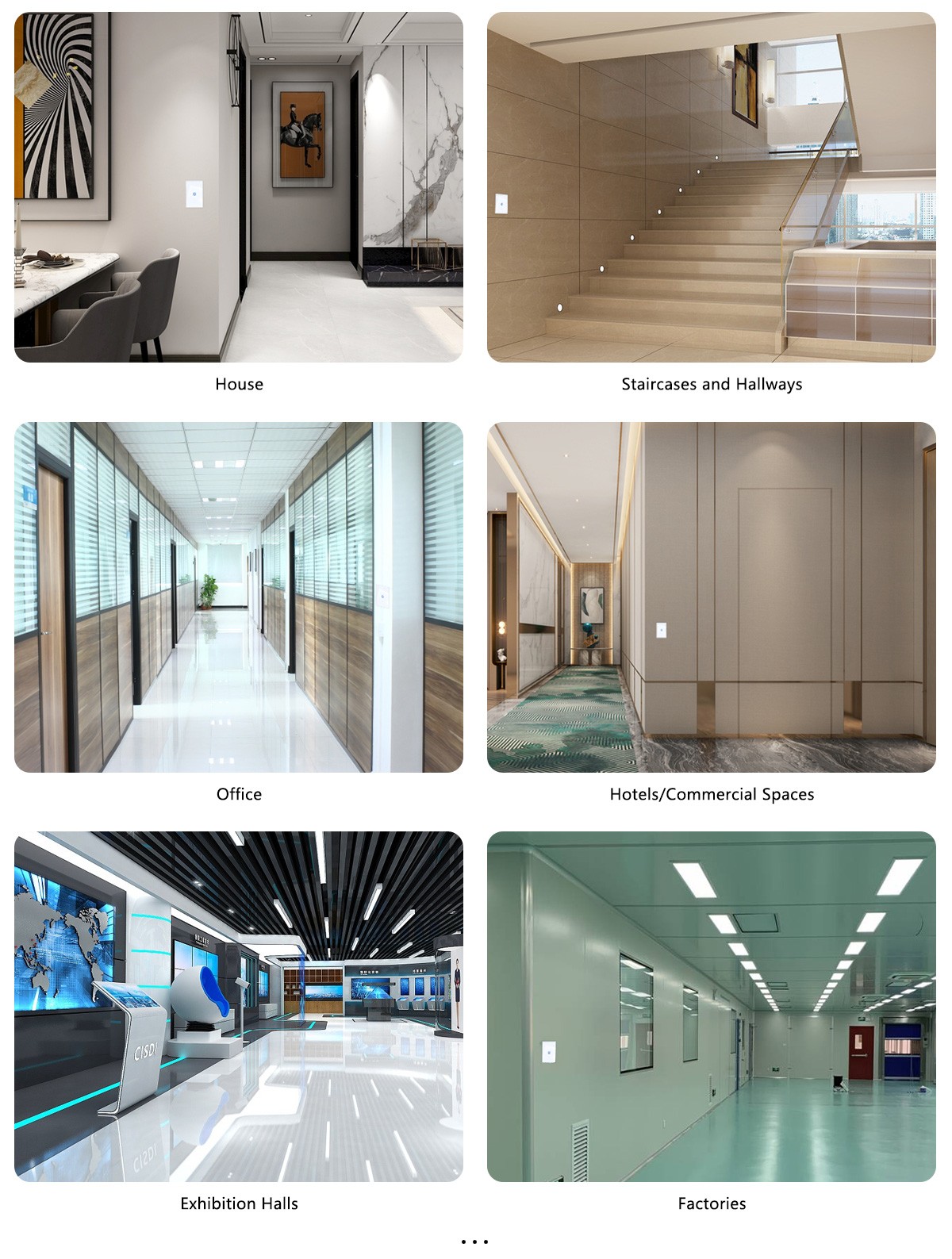

Application Scenarios


The Smart Microwave Sensor Switch can be widely applied in various settings, including:

Residential: Entryways, living rooms, bedrooms, stairs, hallways, etc.

Commercial: Shops, offices, restaurants, hotels, etc.

Public: Hospitals, schools, stations, airports, etc.

Industrial: Factories, cleanrooms, research centers, etc.





Installation Notes


Wiring Instructions

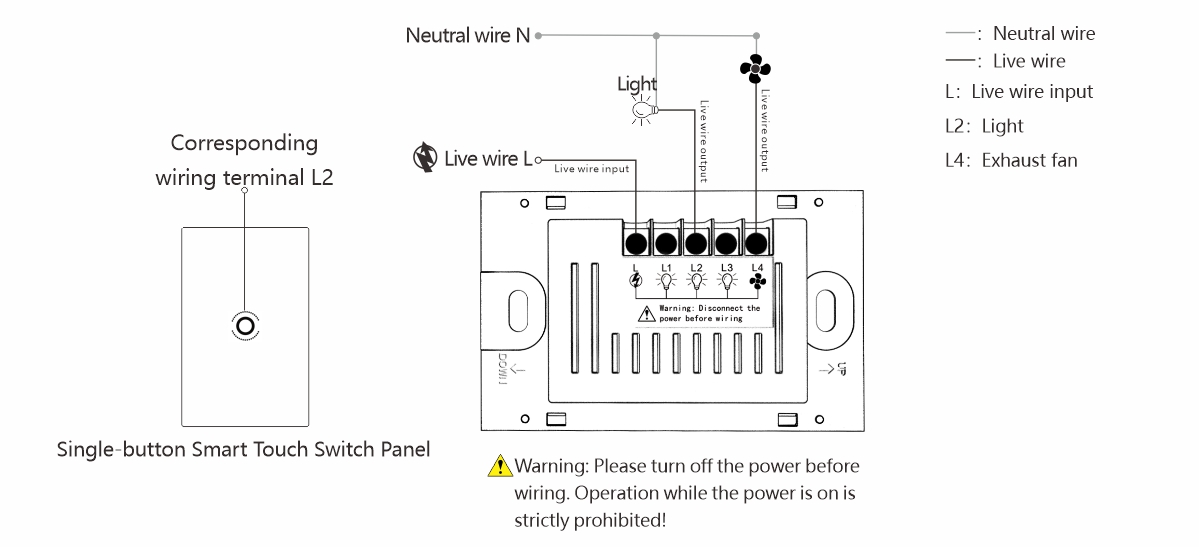

Single-button switch

/upload/202403221741503297.jpg

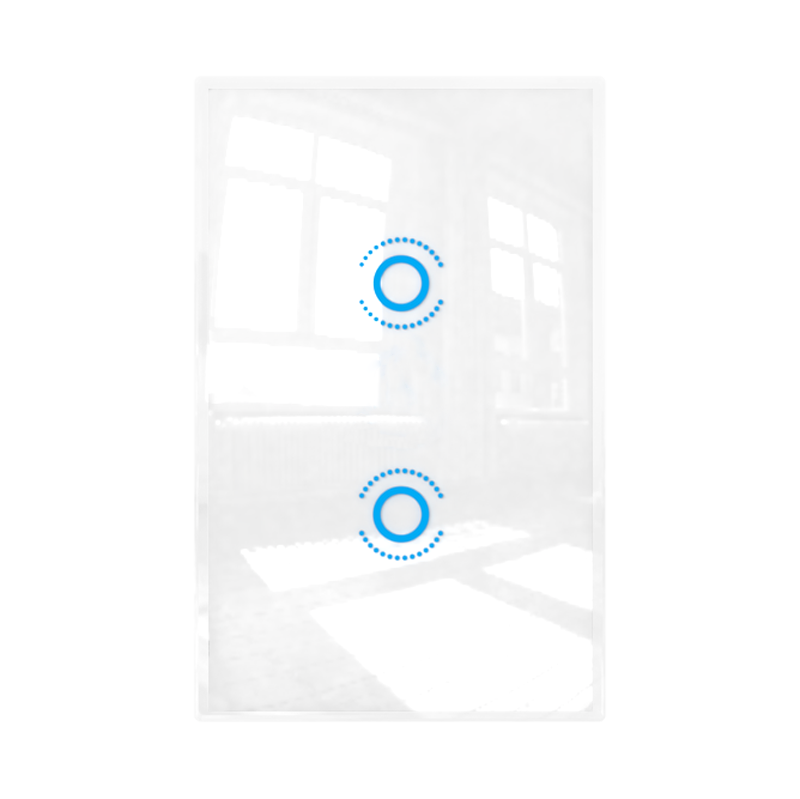

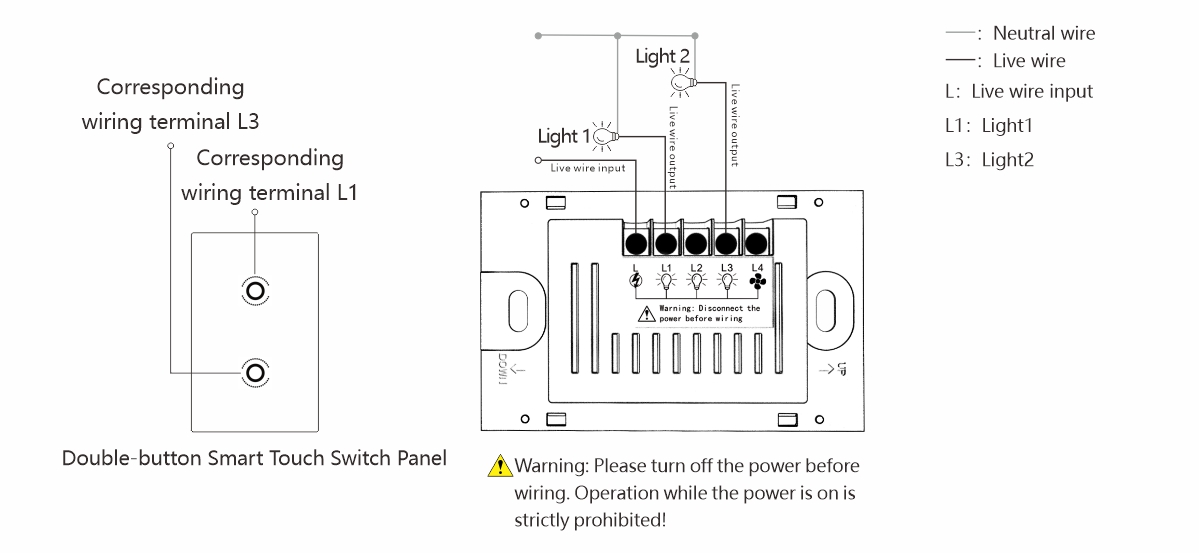

Double-button switch

/upload/202403221741551656.jpg

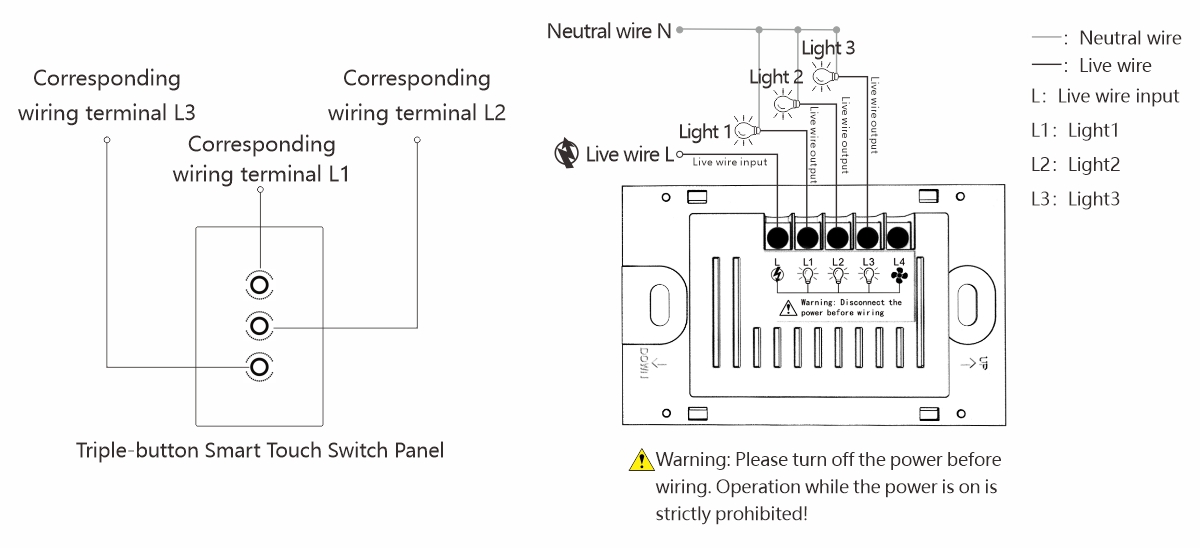

Triple-button switch

/upload/202403221741222569.jpg


Installation Method

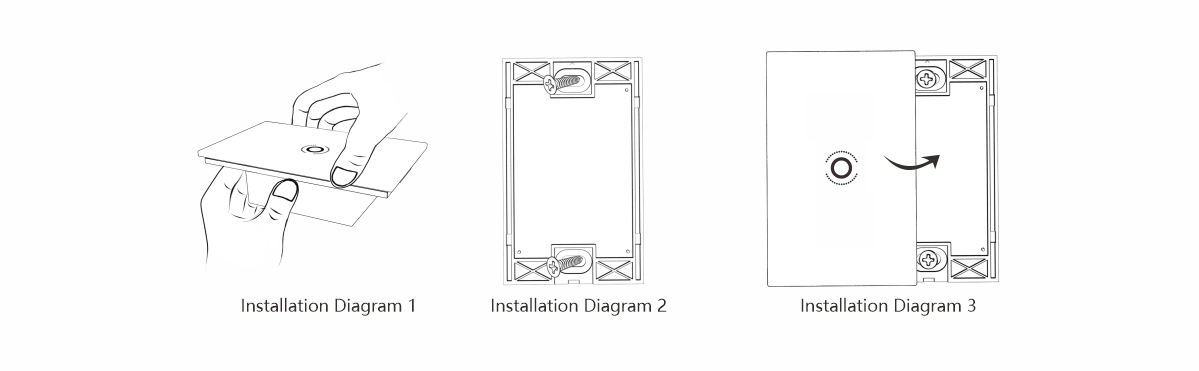

Step 1: Lift the upper cover upwards (refer to Installation Diagram 1).

Step 2: Wire connection (please refer to the wiring diagram), then use screws to secure the lower cover to the mounting box (refer to Installation Diagram 2).

Step 3: Snap the touch panel *** the lower cover to complete the installation (refer to Installation Diagram 3).




Installation Precautions


• During installation, please wire according to the wiring method. Before installation, ensure that the firewire is identified, and confirm that the input voltage is AC 100~240V AC.

• This product is prohibited from being installed near continuously rotating objects.

• Avoid installation near devices with large electromagnetic radiation, such as radios, high-voltage equipment, high-power walkie-talkies, antennas, etc. Electromagnetic radiation may interfere with the sensor switch, potentially causing frequent activation.

• This product can penetrate thinner objects such as glass, plastic, gypsum board, ceramics, etc., but it may affect the sensing distance.




Specifications


• Operation Method: Microwave sensing control, touch control

• Frequency: 10.525GHz

• Material: Toughened glass + Flame retardant PC

• Switches: Single, Double, Triple

• Detection Distance: Frontal detection ≤12m

• Delayed Light-off Control Range: 1 minutes / 5 minutes / 10 minutes

• Switch Load: ≤300W

• Wiring Method: Single Live Wire (Single Control Wiring)

• Standby Power: 0.072W/h

• Working Voltage: 100~260V

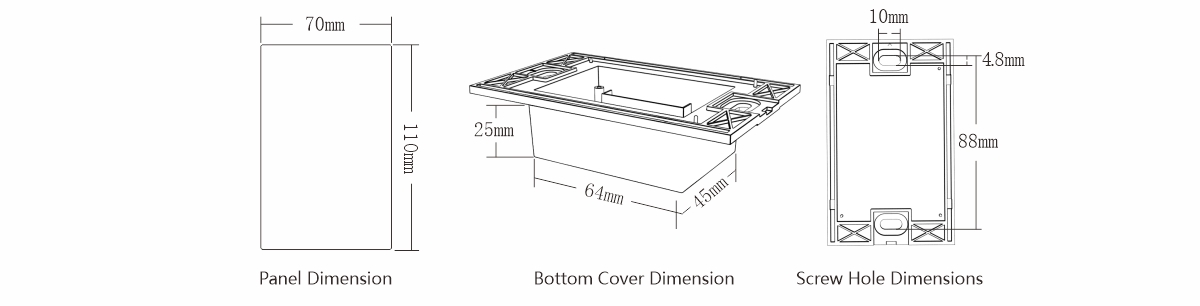

• Product Dimensions: 70*110*32mm
