WENSHING launched its real-time location system (RTLS) base station in March 2022, it adopted ultra-wideband (UWB) technology for communication and positioning using short-pulse signals. UWB signals have an extremely wide bandwidth, covering multiple frequency bands, and also have an extremely short pulse width, enabling high-precision positioning. UWB technology uses time-domain transmission for both communication and positioning, calculating distance through the difference in pulse arrival time with an accuracy of within 20cm. The maximum communication distance is over 200 meters, making it widely used in indoor positioning, industrial automation, intelligent logistics, and other fields.
APPLICATIONS

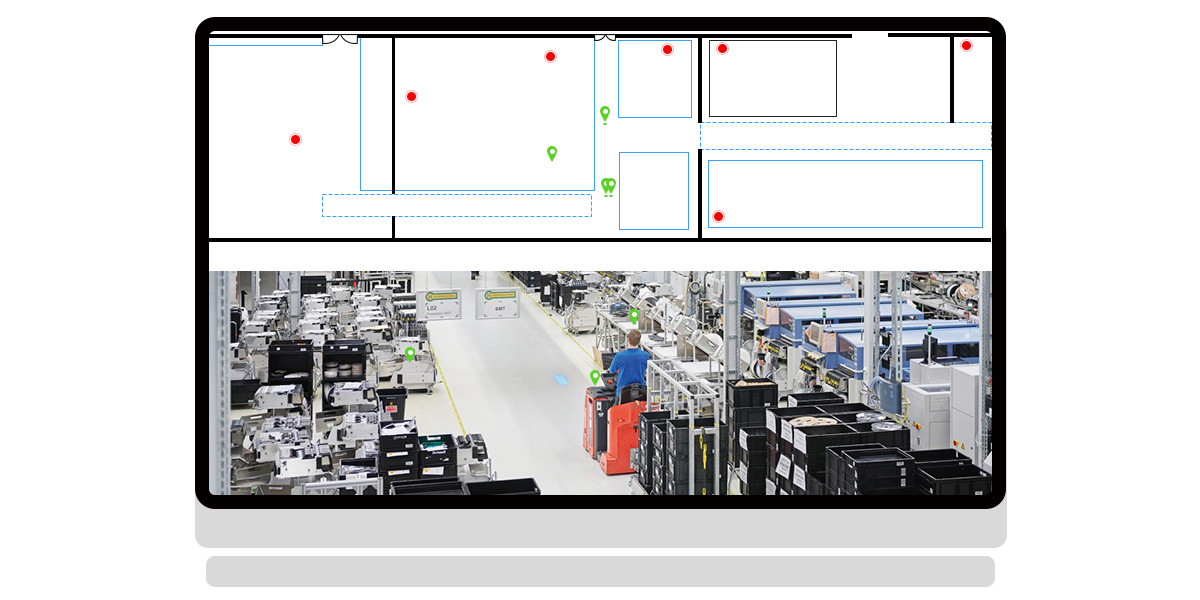

Positioning status - the positioning tag is active in the area with base stations, and the following content can be obtained in the positioning software:
Tag location real-time monitoring and real-time trajectory tracking
Tag activity status indication, tag battery monitoring, low battery reminder
Label real-time mileage, real-time activity area analysis
Quickly find objects on the map

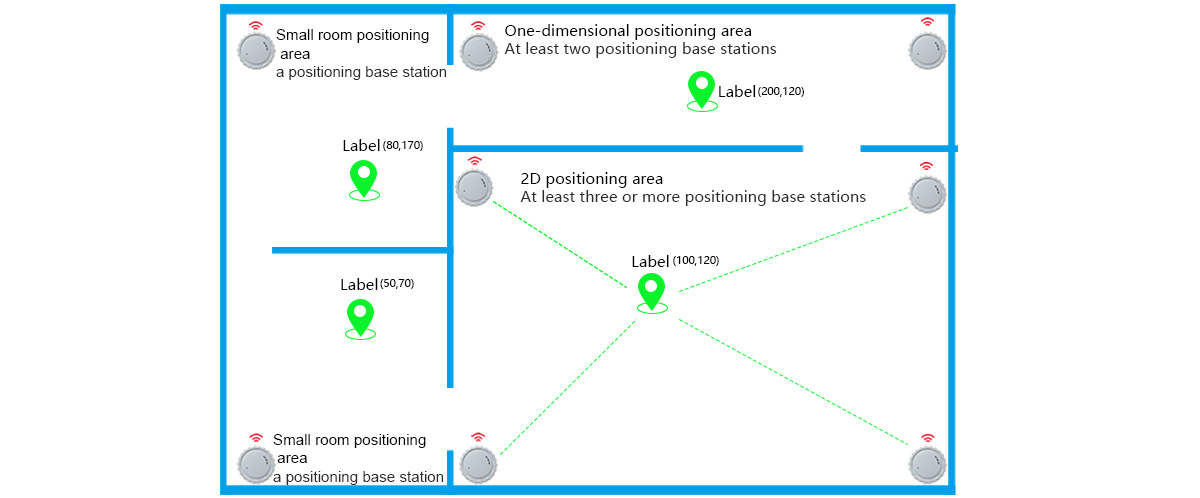

The number of base stations to be placed needs to be based on the area

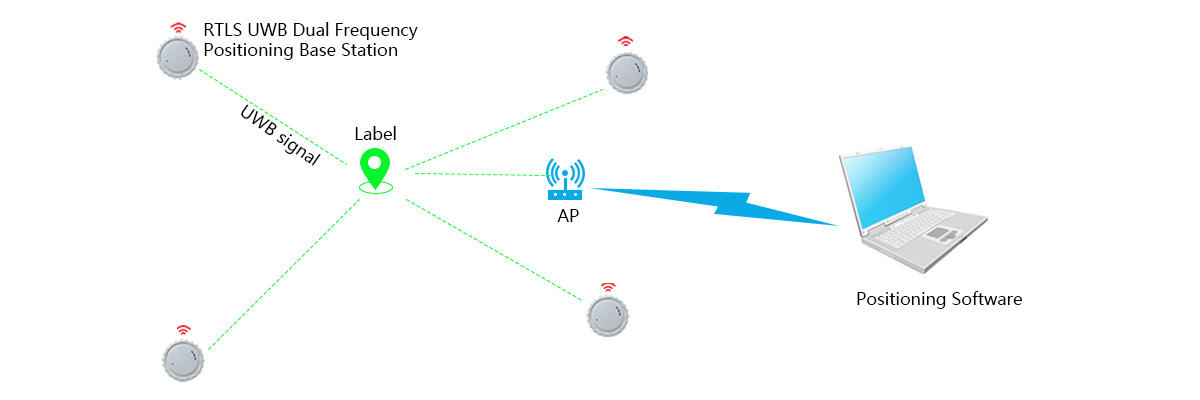

Base stations are typically installed indoors or in complex environments, and can communicate with location tags
to measure the distance between the tag and the base station. Positioning algorithms are used to calculate
the location information of the tag, which is displayed on the system interface.
SYSTEM INTEGRATION

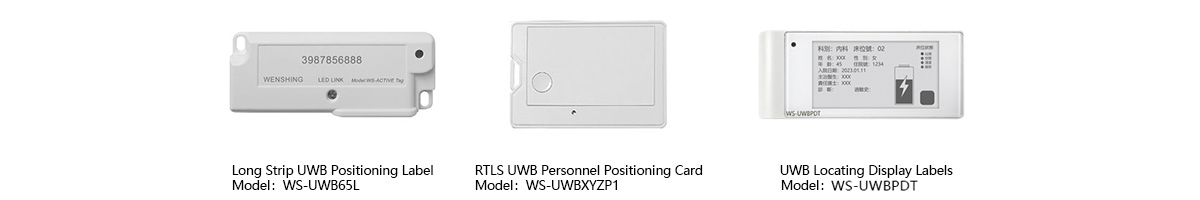

In conjunction with WENXING Electronics' RTLS location tags (with distances ranging from 50-200 meters for different UWB tags)
1. With elongated UWB location tags, it is possible to track and monitor the location of personnel and goods.
2. With RTLS UWB personnel location cards, it is possible to conduct personnel positioning and view their movement trajectory. This product is equipped with a button for users to request events, and it can also provide
reminders for calls to the wearer of the card.
3. With UWB positioning display tags, it is possible to conduct personnel and object positioning, and view their movement trajectory. Basic personnel information can be obtained on the tag, which is convenient for management.
RTLS UWB positioning base stations are widely used in logistics, manufacturing, medical and other fields. They can realize functions such as asset tracking, production process monitoring, and personnel positioning to improve operational efficiency and safety.
APPLICATION SCENARIOS

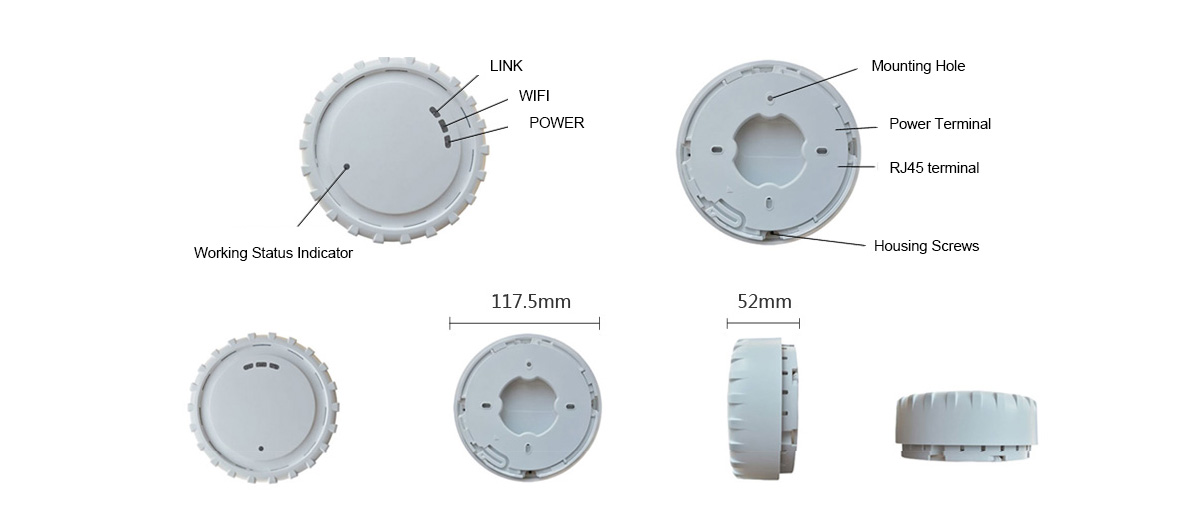

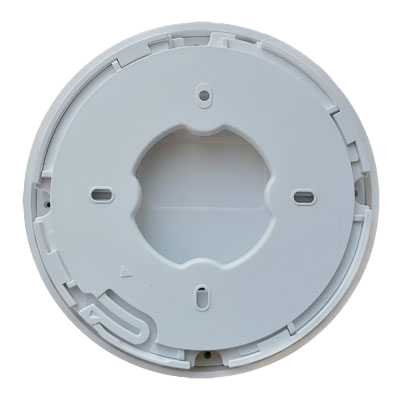

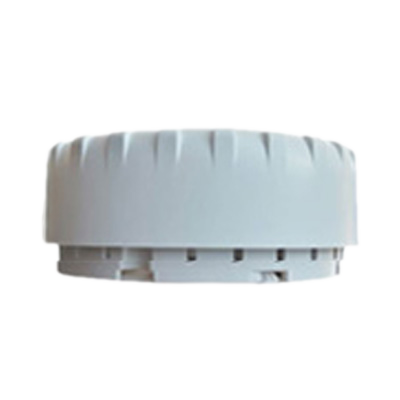

APPEARANCE
SPECIFICATION
Work voltage: 12V 500mA
Frequency: 3.5GHz, 6.5GHz
UWB communication rate: 820kHz
WiFi: 802.11
RJ45 network interface
WiFi Mesh function
Communication distance: 50-200 meters for different UWB TAG distances.
