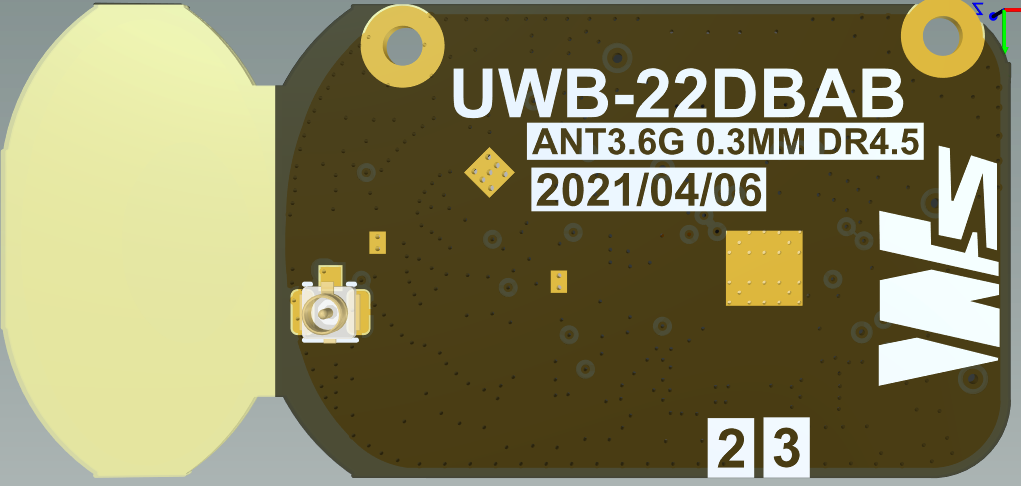

RTLS UWB Precise Positioning Module

Model:
UWB-22DBAB

Based on outdoor satellite positioning technology, it cannot be used indoors normally. WENSHING released the RTLS UWB precise positioning module (model:22DBAB UWB) in April 2021. It is solve the problem of unable to receive GPS signals indoors and unable to locate. Two-way sensing to ensure high accuracy, the error is within 10CM; high power, low power consumption; strong penetrating power; large capacity and fast transmission speed. Wenxing electronic antenna design uses an innovative PCB high-frequency antenna built in to the module, users can quickly import products, the distance is more than 800M (open area) and ultra small size.The number of plant deployments does not need to be large, minimization of costand maximization of utility.

Application

●  Remote control aircraft

  Unmanned vehicles

  Forklift positioning

  Items positioning

  Vehicle anti-theft

  Soil and rock flow monitoring

  Building monitoring

  Automatic positioning of crane tower

  Port wall cabinet automation

  Medical equipment

  Positioning the base station

Features

  High power -9dBm(MHz)

  Positioning accuracy 10CM

  Built-in antenna

  Ultra long distance 800meters

  Two-way communication

  Low power consumption

  TDoA positioning

  5V low working voltage





 Integrated MAC support function

 2.3*5cm ultra-small size

 Highly stable TCXO crystal oscillator

 TTL UART communication interface






Parameter

Specification

Unit

Condition

Min.

Typ.

Max.

Frequency Range

3744



4243.2

MHz



Transmitted    power



-9



dBm

MHz

Data Rate

110



6800

Kbps


Adjacent Channel
     (±12.5 kHz)



62



dBm



Supply Voltage, VDD

4.5



5.5

V

DC

Operating Temperature

-40


+80

°C
