Home > Products > Wireless RF Module> LoRa Module > LoRa 20dBm Transceiver Module
(with MCU)
High sensitivity, Low power consumption
410~525MHz

LoRa 20dBm Transceiver Module
(with MCU)
High sensitivity, Low power consumption
410~525MHz

Model:
TRW-LORA20UART

This module include MCU, high sensitivity, low consumption and anti-interference. Able to reach 1.5km (Straight line, open area). Use high efficiency cyclic error-detection and correction code to greatly enhance sensitivity and anti-interference. Transmit power 100mW, low consumption and wake on wireless. LoRa provides ultra long range while maintaining low current consumption wireless platform is the prevailing technology choice for building IoT networks worldwide. LoRa spread spectrum technology brings farther communication distance and covers community with thousands of people. Suit for meter-reading, smart home and integrated burglarproof alarm equipment. LoRa technology is being integrated in to cars, street lights, manufacturing equipment, home appliances, wearable devices – anything, really. Lora technology is making our world a Smart Planet. The patented modulation technique the device can achieve sensitivity of over -140 dBm. The modulation technique also provides significant advantages in blocking and ***ivity over FSK. The device also support high performance (G)FSK for WMBus, FCC Part 90, 15.4g, and other legacy modes.

APPEARANCE

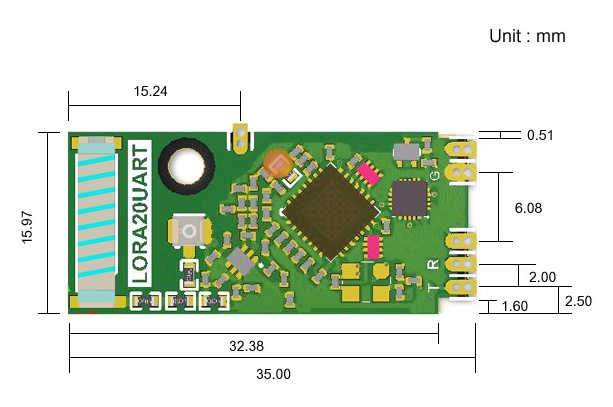

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


FEATURES

Application


MetInfo enterprise content manager system | MetInfo CMS

RFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

RFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications


ParameterDescriptionMinTypMaxUnit
VDDSupply Voltage Range2.53.33.6 VV
FREQOperating frequency410
525MHz
IDC_STStandbymode power consumption
5
uA
IDC_TXTransmit power consumption (7~20dBm)24
124mA
IDC_RXReceive power consumption
15
mA


PinNameI/ODescription
1TXIUARTInterface TX
2RXOUARTInterface RX
3DIOI/OTBD
4GNDGNDGround
5VDDPowerPowerSupply 2.5~3.6
6GNDGNDGround
