Wireless Digital Security System 7"

Model:
WS-VIDEO RECORDER

Wireless Digital Security System 7'' Monitor Model:WS-VIDEO RECORDER 2.4GHz Wireless Digital Video Color LCD Recorder utilizes RF technology receiving audio and video from Wireless Cameras. Completely digitalized and high interference resistance. It is capable of achieving straight line of sight distance for up to 500m and easy to setup. When paired with Wireless Digital Video Camera it is suitable for various applications. Wireless camera transmits the video signal wirelessly to a receiver in distance. Displaying fluent video and audio on the monitors; it is a simple solution for remote monitoring and wireless visual and vocal effects. Providing Instant continuous and distortion less signals of video and audio. High quality full-color screen display pictures in their naturally color.

APPEARANCE

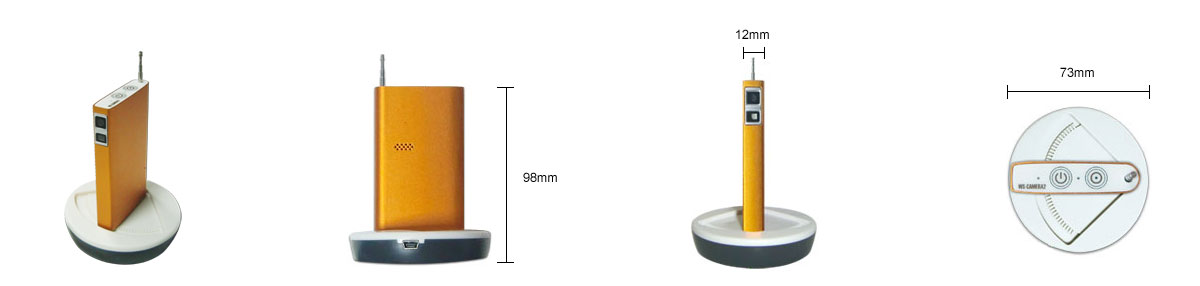

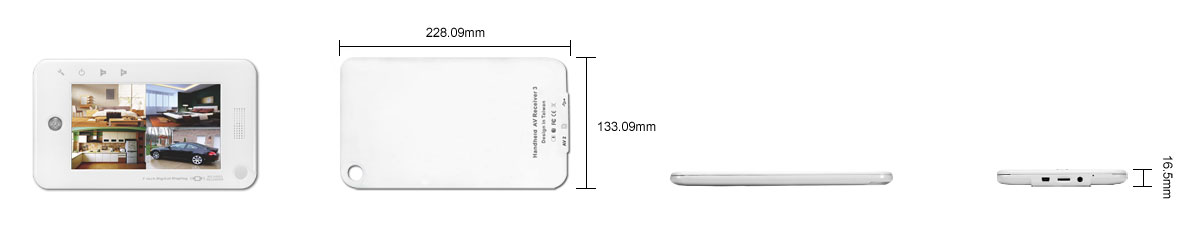

External Appearance

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS


FEATURES

Application


RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMSRFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMS


  • Technology:2.4GHz radio frequency, anti-interference, MPEG4 format, providing fully digitalized solution with sharp transmission of audio and video signals.

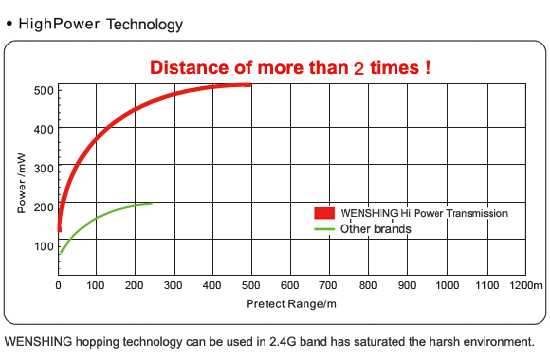

  • Distance:The furthest distance among peers in the same industry.

  • Product ***ion:Each receiver captures remote view from up to 4 cameras.

  • Video resolution:Split 4-screen image shown at 320*240 (QVGA), individual screen image shown at 640*480 (VGA).

  • Audio-video:Both 7?receiver and camera have built-in miniature microphone and speaker to record audio and video,with two-way transmission (Walkie-Talkie).

  • TV out: 7”receiver with TV output function supporting NTSC and PAL.

  • Expansion:Combining AV sender allows your own camera to work with 7”receiver.

  • Video recorder:32G Micro-SD allowing circulation recording,motion detecting,time recording and archive reviewing.

  • Detecting:Sending out alert while detecting the movement of objects.

  • Night vision:Embedded Infrared to automatically capture clear image under dark or insufficient-light surroundings.

  • Remote controlling:Record video and rotate angles of cameras 110 degrees through the control of 7”receiver remotely.

  • Power supply:High-capacity Lithium battery provides the time efficiency of video recording after fully charged.


SPECIFICATION

Technical specifications

VIDEO RECORDER

  • Screen size:7 inch

  • Resolution: 800x480

  • Video quality: VGA resolution/ASF format

  • Image compression: MPEG4

  • Storage media: Micro SD (Support up to 32G)

  • Video system: NTSC/PAL

  • Speaker output power:0.5W

  • Expandable pairing: up to 4 cameras

  • Working voltage: 5V 1A

  • Battery: Rechargeable Lithium battery (3.7V/3000mA)

  • Power consumption: 500mA

  • Playback time: 4 hours

  • Dimension: 228.09*133.09*16.5mm

  • Weight: 380g

  • Operating temperature: -10℃~ + 50℃


  • Camera 2

  • Camera lens: 1/4 inch CMOS sensor

  • Rotation angle: 110 degree

  • Illumination: Built-in IR LED (automatically turn on/off)

  • Working voltage: 5V 1A

  • Battery: Rechargeable Lithium battery (3.7V/750mA)

  • Power consumption: 750mA

  • Playback time: 3 hours

  • Dimension:98*73*12mm

  • Weight:104g

  • Operating temperature: -10℃~ + 50℃


  • RF Specification

  • RF Frequency: 2.4GHz Hopping

  • Output power: 20dBm

  • Receiver sensitivity: -80dBm

  • Range: 500M (Straight-line distance)


  • Accessories

  • Power Adapter: 5V 1A*2

  • Video and audio signal cable*1

  • User manual*1


  • Advantages of wireless remote monitoring

  • Low initial cost, wireless, simple installation, easy maintenance, and strong expansion capability.

  • Connecting for usage right away, and adding wireless remote monitoring *** network that you already have. Do not require purchasing new network or other equipment.

  • Low maintaining fee. The network provider will be in charge of the maintaining of wireless remote monitoring. The front-end connects for usage right away and does not need maintaining system.

  • Sending instant information from different places through wireless communication to wireless remote monitoring and it will set visual data automatically for retrieval in the future.Camera connects with wireless video transmitter and sending information signal to monitoring center through radio waves.
