900MHz Wireless Two Way Voice
Pagers Walkie-talkie

Model:
WS-DIAL

Dialogue device is wireless two-way voice transmission products and it takes 925~928MHz. Mainly provide wireless two-way voice transmission and includes a complete RF and audio circuits, particularly suitable for short-range two-way conversation, health and walkie-talkie service, call systems, the use of a wide range.

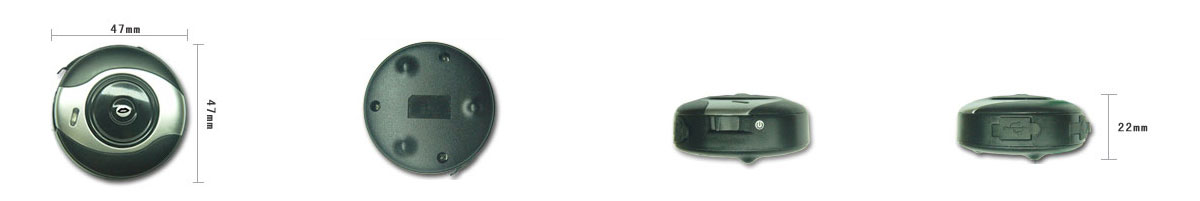

APPEARANCE

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


FEATURES

Application


MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS

RFID|Wireless Modules|RF Module|Wireless VIDEO MetInfo enterprise content manager system | MetInfo CMS



MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications


  • Two-way talks.

  • Broadcasting groups.

  • LOBATT Tips.

  • Vibrating alert to called receiver.

  • Charging Indicator.

  • Queue with host (for user of called receiver).

Built-in 3.5 mm standard audio hole, as long as the headset ***ion and machine will automatically detect and switch to the voice calling feature. It has three modes as followings:

One-on-one: the two sides can conduct two-way conversation.

One-to-many: group for this device of broadcasting function, it may join the call. Groups of the remaining aircraft will remain unchanged devices to listen to the state, until one side to withdraw from the call, before entering the mode of two-way conversation.

If machine is not plugged headset, you can switch through the built-in shock, reminded users of the call, in the case of one-on-one call each other.

Normal Boot

One second after the lights turned on, motors will be shocked for one second and the indicator light blinks every five seconds (about 300ms).

Pairing

  • Please hold down the button and turn it on after matching is finished matching. The lights turned on, around 3 seconds after, the machine began to vibration.

  • At this time, please immediately release button and Dialogue Machines will start to do search action. No other equipment besides Dialogue Machines during 5 seconds, Dialogue Machines began to find an empty channel and start action.

  • When second Dialogue Machines will start to works, please repaid above actions and do not shut down power to facilitate the Dialogue Machines.

Calling

  • Press the button and the light will turn on.

  • Others paired matches will be vibration, flashing lights will be continuous.

  • When other whole users press the response button, two sides move to stop at the same time.

  • During call process, if there is no response and the time is over 10 seconds, machines will automatic cancellation.

Talkback use

  • Plug in your headphones and press the button, you can start broadcasting then. (As long as the pair completed, all will be able to hear.)

  • As long as the other side presses the button-speaking, this person can start to talk.

  • Not press button, then will be the audience then.

  • If another one is without plug in headphones, it will not do any action.

ItemSpecificationRemark
Power320mAh Lithium batteries
Frequency925~928MHz
Output Power10mW
DistanceOpen space >100m
Channel4800Channel span 12.5KHz
Sensitivity-110dBmPacket error rate:1%
The Longest Standby TimeOver 120 hours
Continuous Talk TimeOver 10 hours
Charging Time1.5hours
Current ConsumptionStandby:3.5mA Calling:15mA
Talking: 36 mA Vibration: 60mA

Action Temperature-10℃ ~+70℃
Storage Temperature-20℃ ~+45℃
Relative Humidity≤60%
Weight22.8g
