Wireless Table Service Bell

Model:
WS-TSB

This product is wireless, and doesn´t need to be installed. Customers can get best service in short time and with least manpower. It can be used in many occasions, like restaurants, hospitals, bloodmobile, ticket offices, amusement parks, banks financial center, and so on. The product includes one main device and Install up to 998 service calling systems, also there are 16 types of ring tone ***ions for you to choose. This product comes with a rope for service calling systems to fix on tables and so on.

APPEARANCE

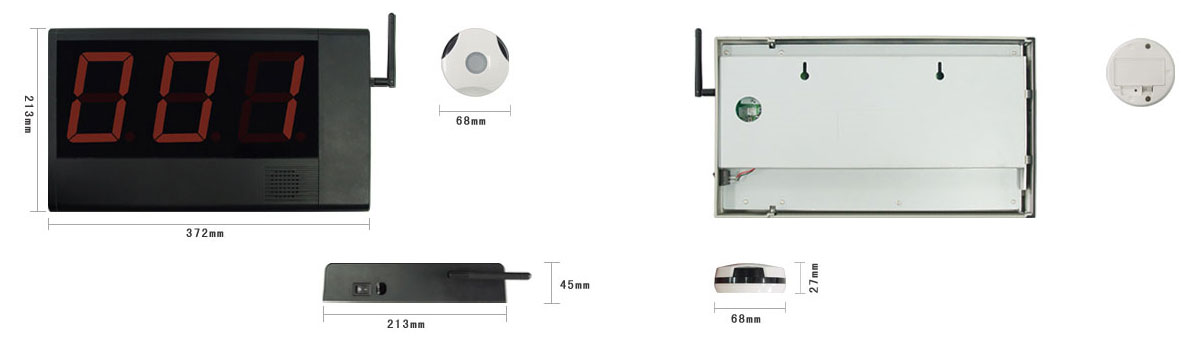

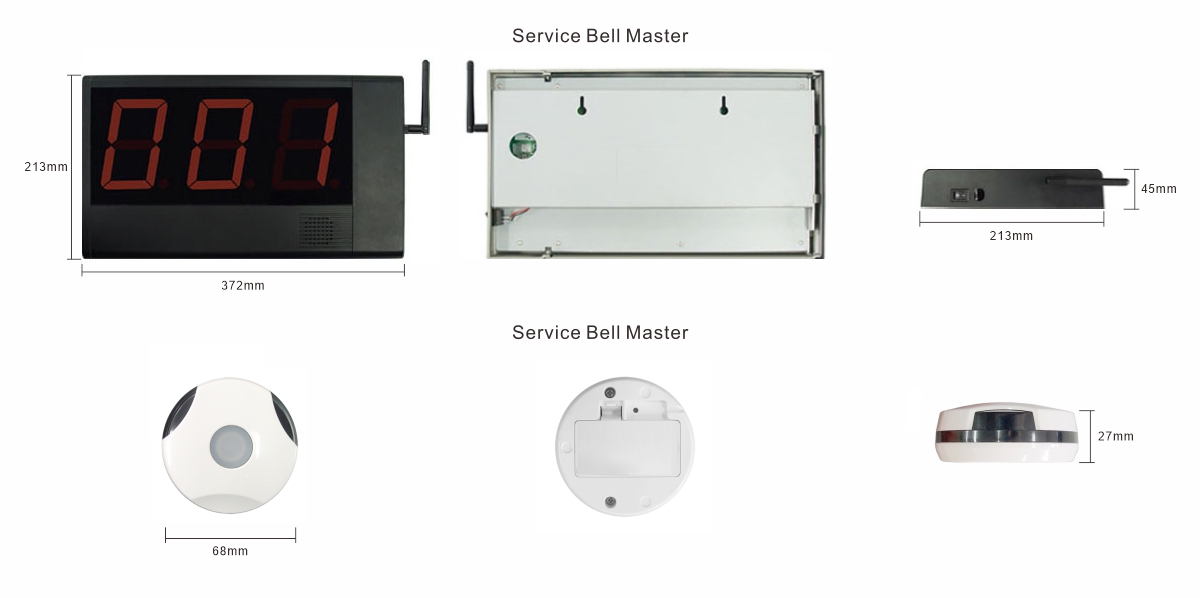

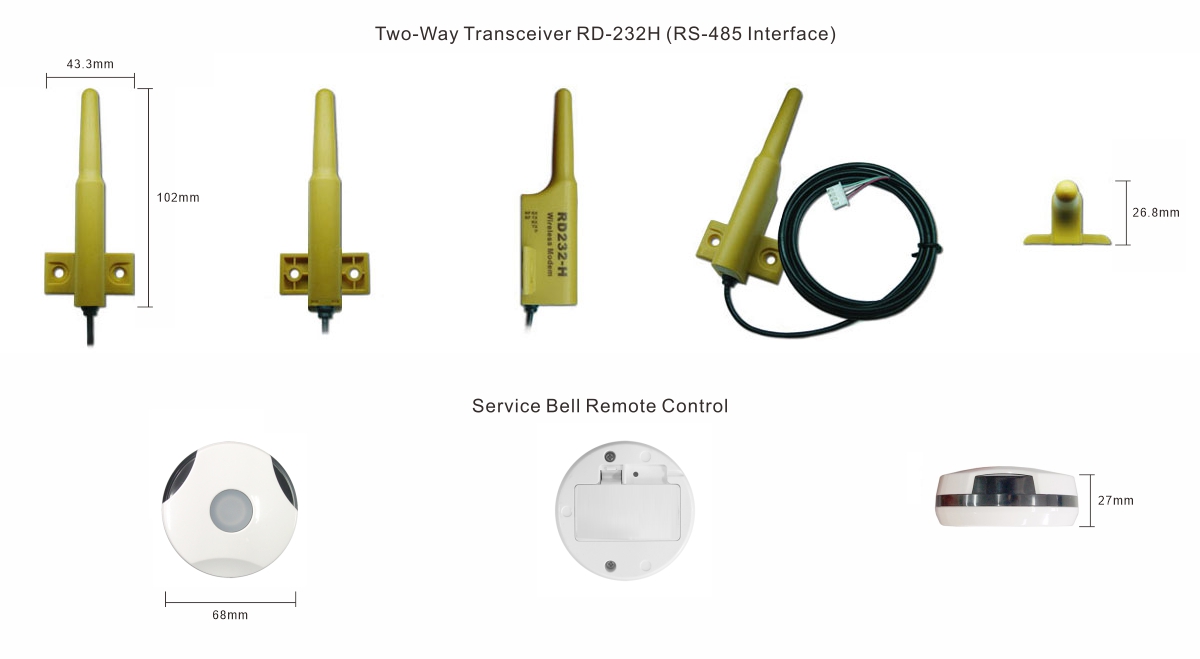

External Appearance


RFID|Wireless Modules|RF Module|Wireless VIDEO


FEATURES

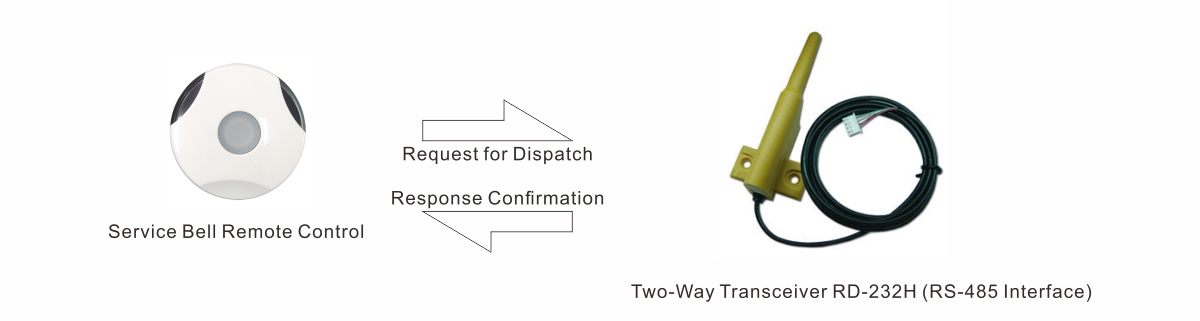

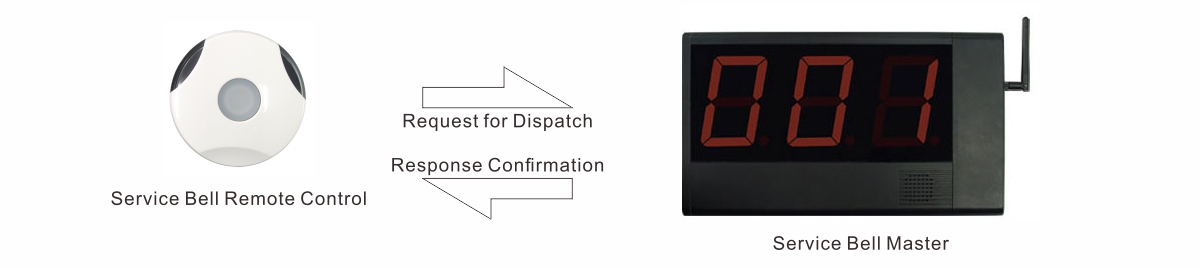

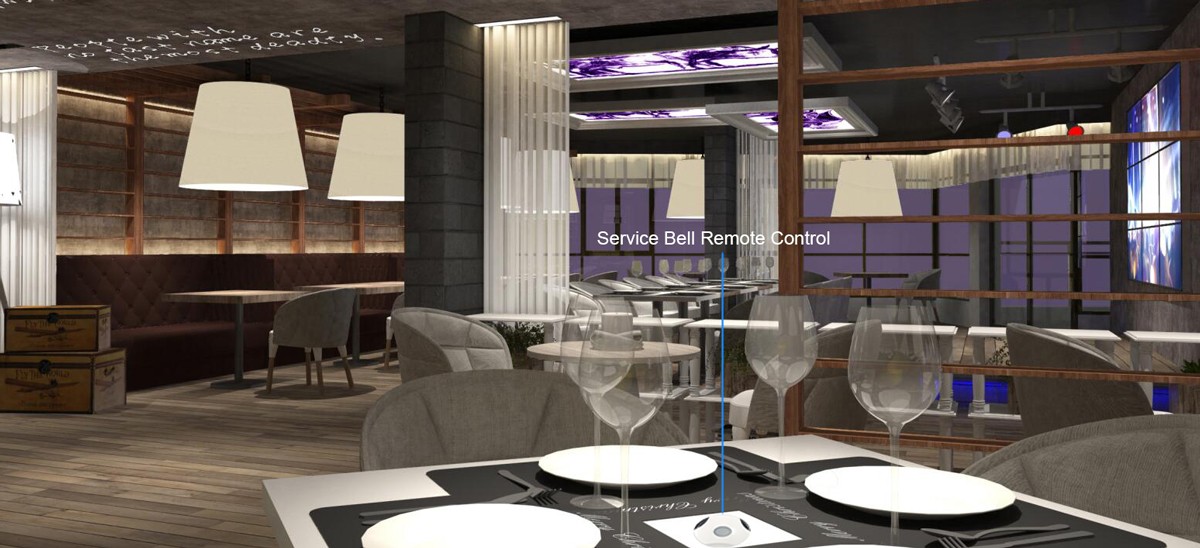

Application


MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS             MetInfo enterprise content manager system | MetInfo CMS

   MetInfo enterprise content manager system | MetInfo CMS   MetInfo enterprise content manager system | MetInfo CMS   MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications



High sensitivity wireless connection with up to 150 meters transmits range.

Install up to 998 service calling systems in single area.

16 types of ring tone.


Receiver(SCR)
Frequency433MHz/868MHz/902MHz
SensitivitySINAD
ModulationFSK
Remote DistanceMax 150M(open environment)
Display Type4"7 stage displayer X 3
Power SupplyDC 12V/1A Stable voltage power supply
Power ConsumptionStand by : 28mA;Active : Max700mA
Operation Temperature-10℃~40℃
Storage Temperature-20℃~60℃
Storage Humidity10%~90%
Size372mm(L) X 213mm(W) X 45mm(H)
OthersStatus LED indicator X4


Transmitter(SCT)
Frequency433MHz/868MHz/902MHz
RF Power10mW
ModulationFSK
Power SupplyAlkaline battery (AAA) X 2
Power ConsumptionStandby : 20uA; Active : 37A
Battery Life6000times
Operation Temperature-10℃~55℃
Storage Temperature-20℃~60℃
Storage Humidity10%~90%
Size68mm(D) X 27mm(H)
OthersStatus LED indicator X1(Green),Low Battery LED X (Red)
