Home > Products > RFID Series> Active RFID Base Station > UHF RFID Active Parking Lot Communication
Base Station

UHF RFID Active Parking Lot Communication
Base Station

Model:
WS-ACTIVE RFID

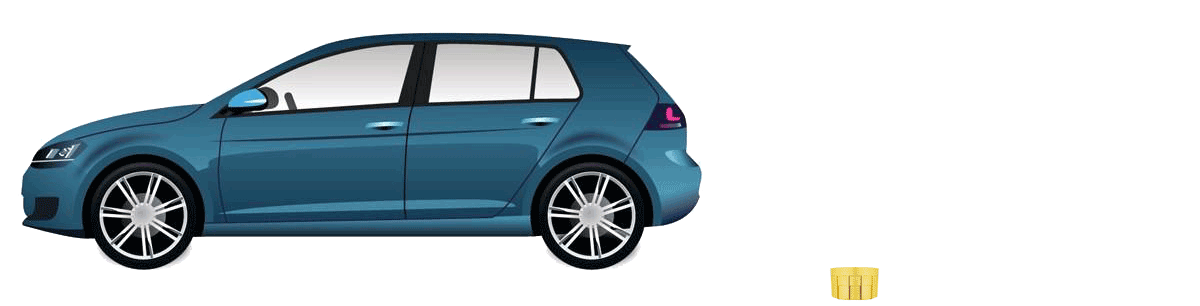

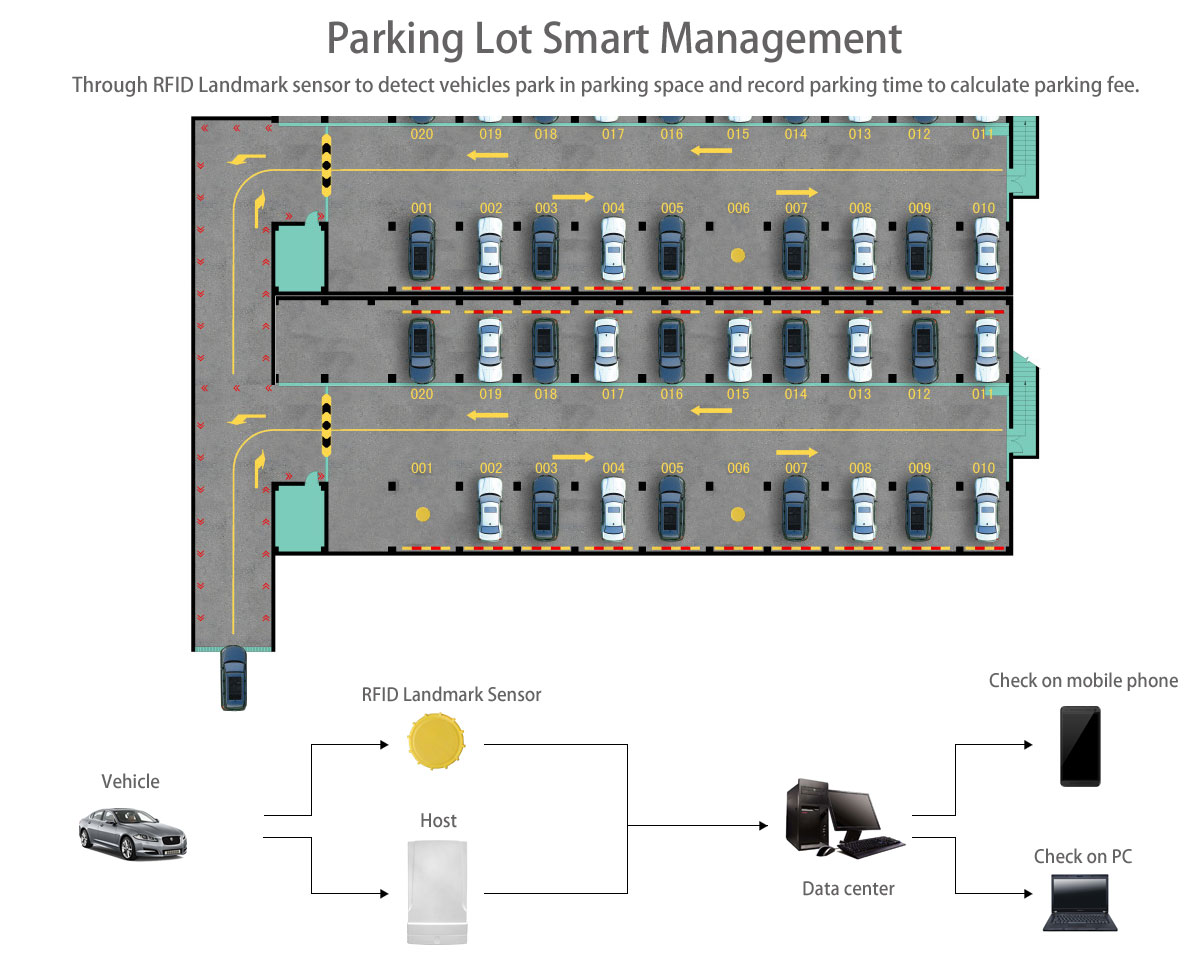

This product adopts the principle of Earth Magnetism to inspect the status of parking space to ensure parking lot running well and fully utilization. It provides the effective parking solutions for nowadays smart parking lot. It is installed at ground surface of parking space and detecting vehicles by Earth Magnetic Sensor. When vehicles enter and exit on it to cause the earth magnetic change immediately and judge the status of parking space. Drivers enter the parking lot and follow the instructions to enable to find out the usable parking space immediately. It can cooperate with data collector to calculate the flow of enter and exit vehicles then manage the usable parking space. RFID Landmark Sensor is with low-power consumption lithium battery and embedded at ground surface and enable using more than five years in normal situation. It uses wireless communication and easy for installing and maintenance without large-scale excavation, and only change a new sensor if it is malfunction. It enables to reduce managers and operation costs. Thereby it be able to apply widely for car parking management on roadsides and parking lots. Note: It is prohibited to use in mainland China.

APPEARANCE

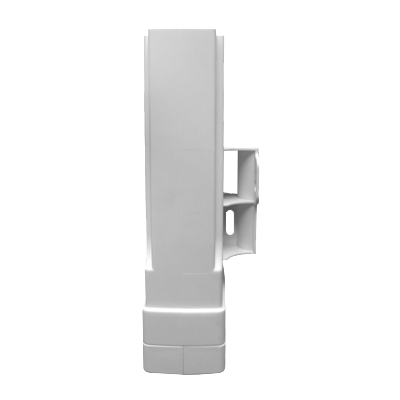

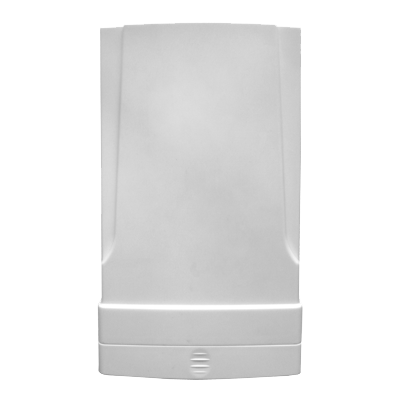

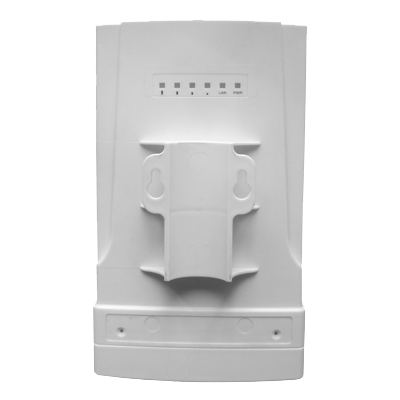

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO


Feature of Product

RFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO


SPECIFICATION

Technical specifications



System Features



1. High-Accurately: Using Earth Magnetic Sensor to detect vehicles and with highly sensitive.

2. Easy Installation and Maintenance: When the sensor is damaged, it only needs to be replaced, and no excavation or construction is required.

3. Waterproof and Anti-Collision: No affected by weather.

4. Anti-interference: No special requirements for setup environment.

5. Low Power Consumption: Safe and healthy for human body.

6. Battery Life: More than 5 years.

7. High Speed Data Exchange: Achieve two-way high-speed data exchange between sensor and receiver, without worrying about simultaneous exchange of data in between.

8.. Low Investment Cost: Enable reducing number of managers and operation costs.

Note: Not available in China.


Host Specification

Working Frequency: 450MHz



Antenna: Built-in antenna

Sound: Buzzer sound-prompts

Working Temperature: -10°C ~ +60°C

Storage Temperature: -10°C~+80°C

Working Moisture: 20%~95% (no Condensation)

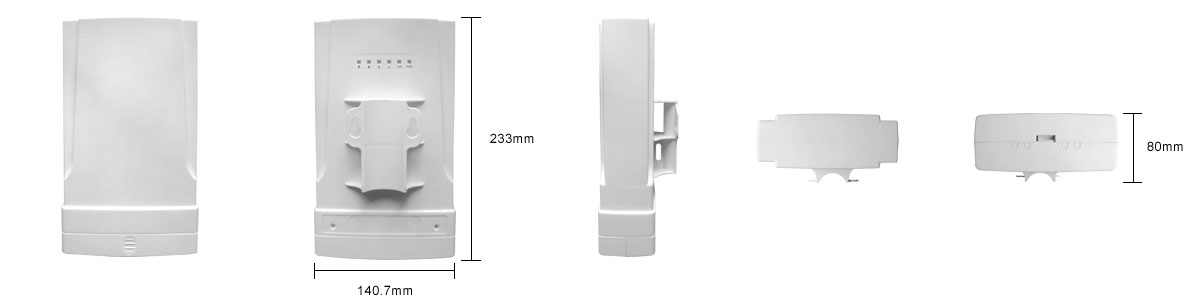

Size: 233*140.7*80mm

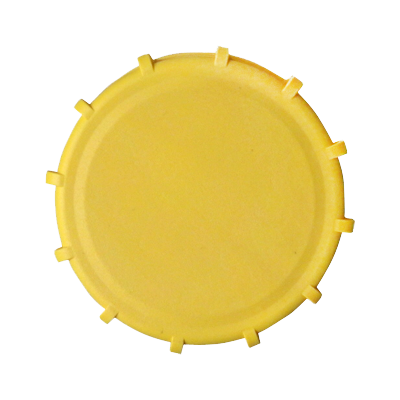

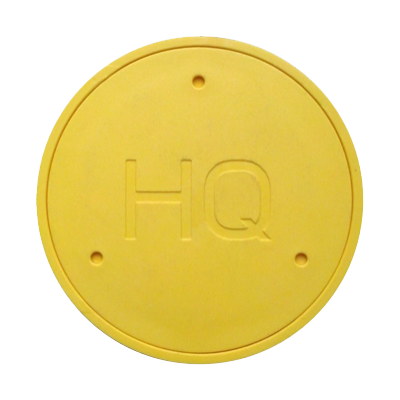

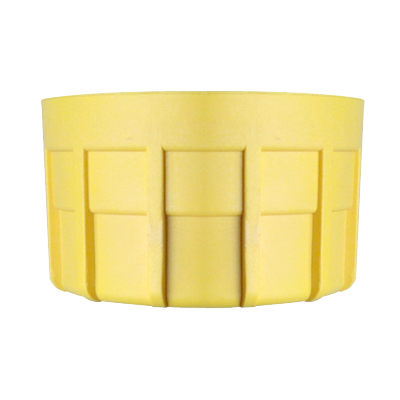

RFID Landmark Sensor Specification



Working Frequency: 450MHz

Feature: Battery is enabled to use 5 years

Institution: Excellent sealing



Working Temperature: -10°C~+60°C

Storage Temperature: -10°C~+80°C

Humidity: 20%~95%(non-condensing)

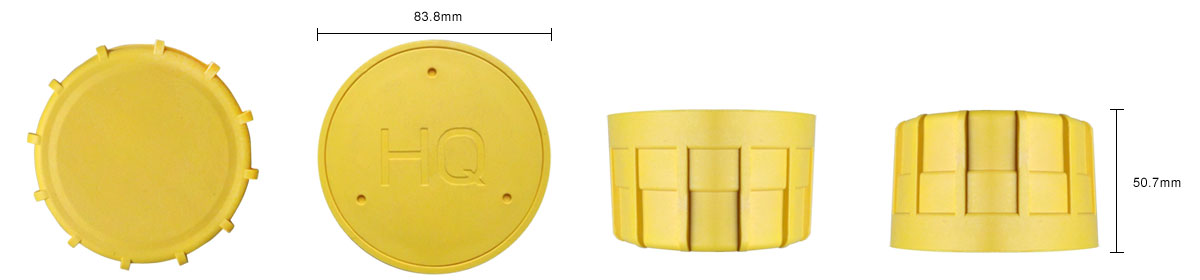

Dimension: 83.8mm (Diameter), 50.7mm (Height)
