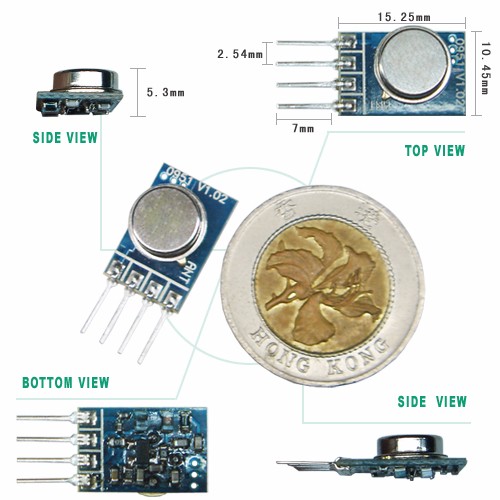

APPEARANCE
產品外觀
| Pin | Function |
| 1 | GND |
| 2 | Data In |
| 3 | VCC |
| 4 | ANT |
SPECIFICATION
產品規格
TWS-BS-1 303.875MHz
Frequency Range:303.875MHz
Modulate Mode:ASK
Circuit Shape:SAW
Data Rate:8Kbps
Supply Voltage:3~12V
Voltage:3V,Current:4.9mA
Voltage:5V,Current:8.4mA
Power Supply and All Input / Output Pins:-0.3 to 12.0V
Non-Operating Case Temperature:-10 to +70℃
Soldering Temperature:230℃ ( 10 Seconds)
Simple To Apply with Low External Count
High Sensitivity Passive Design.
| Rating | Value | Unit |
| Power Supply and All Input/Output Pins | -0.3 ~ +12.0 | V |
| Non-Operating Case Temperature | -10 ~ +70 | ℃ |
| Soldering Temperature (10 seconds) | 230 | ℃ |
| Parameter | Min | Typ | Max | Unit |
| Operating Frequency (±250KHz) | 303.575 | 303.875 | 303.175 | MHz |
| Data Rate | 8 | Kbps | ||
| CurrentConsumption | 8 | mA | ||
| Output Power | 32 | mW | ||
| Operating Voltage | 3 | 12 | VDC | |
| Operating Ambient Temperature | -10 | +70 | ℃ |

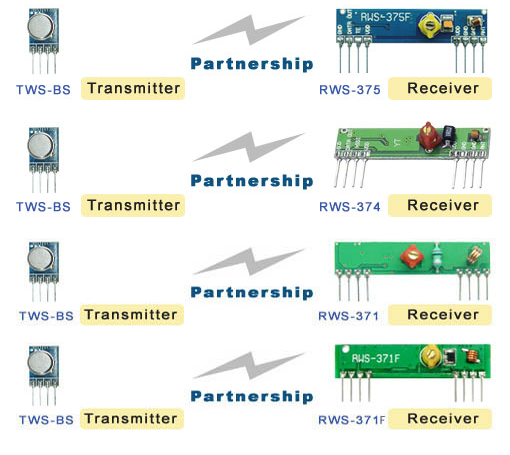

| Transmitter | Receiver | Distance |
|---|---|---|
| TWS-BS-1 | RWS-375-1(303.875MHz) | 80~120M |
| TWS-BS-1 | RWS-374-1(303.875MHz) | 80~120M |
| TWS-BS-1 | RWS-371-1(303.875MHz) | 80~120M |
| TWS-BS-1 | RWS-371F-1(303.875MHz) | 80~120M |
TWS-BS-2 310MHz
Frequency Range:310MHz
Modulate Mode:ASK
Circuit Shape:SAW
Data Rate:8Kbps
Supply Voltage:3~12V
Voltage:3V,Current:4.9mA
Voltage:5V,Current:8.4mA
Power Supply and All Input / Output Pins:-0.3 to 12.0V
Non-Operating Case Temperature:-10 to +70℃
Soldering Temperature:230℃ ( 10 Seconds)
Simple To Apply with Low External Count
High Sensitivity Passive Design.
| Rating | Value | Unit |
| Power Supply and All Input/Output Pins | -0.3 ~ +12.0 | V |
| Non-Operating Case Temperature | -10 ~ +70 | ℃ |
| Soldering Temperature (10 seconds) | 230 | ℃ |
| Parameter | Min | Typ | Max | Unit |
| Operating Frequency (±250KHz) | 309.700 | 310.000 | 310.300 | MHz |
| Data Rate | 8 | Kbps | ||
| CurrentConsumption | 8 | mA | ||
| Output Power | 32 | mW | ||
| Operating Voltage | 3 | 12 | VDC | |
| Operating Ambient Temperature | -10 | +70 | ℃ |
| Transmitter | Receiver | Distance |
|---|---|---|
| TWS-BS-2 | RWS-375-2(310MHz) | 80~120M |
| TWS-BS-2 | RWS-374-2(310MHz) | 80~120M |
| TWS-BS-2 | RWS-371-2(310MHz) | 80~120M |
| TWS-BS-2 | RWS-371F-2(310MHz) | 80~120M |
TWS-BS-3 315MHz
Frequency Range:315MHz
Modulate Mode:ASK
Circuit Shape:SAW
Data Rate:8Kbps
Supply Voltage:3~12V
Voltage:3V,Current:4.9mA
Voltage:5V,Current:8.4mA
Power Supply and All Input / Output Pins:-0.3 to 12.0V
Non-Operating Case Temperature:-10 to +70℃
Soldering Temperature:230℃ ( 10 Seconds)
Simple To Apply with Low External Count
High Sensitivity Passive Design.
| Rating | Value | Unit |
| Power Supply and All Input/Output Pins | -0.3 ~ +12.0 | V |
| Non-Operating Case Temperature | -10 ~ +70 | ℃ |
| Soldering Temperature (10 seconds) | 230 | ℃ |
| Parameter | Min | Typ | Max | Unit |
| Operating Frequency (±250KHz) | 314.700 | 315.000 | 315.300 | MHz |
| Data Rate | 8 | Kbps | ||
| CurrentConsumption | 8 | mA | ||
| Output Power | 32 | mW | ||
| Operating Voltage | 3 | 12 | VDC | |
| Operating Ambient Temperature | -10 | +70 | ℃ |

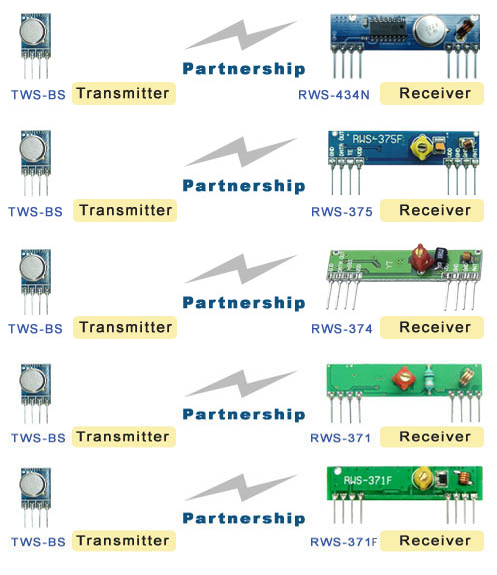

| Transmitter | Receiver | Distance |
|---|---|---|
| TWS-BS-3 | RWS-434N-3(315MHz) | 300M |
| TWS-BS-3 | RWS-375-3(315MHz) | 80~120M |
| TWS-BS-3 | RWS-374-3(315MHz) | 80~120M |
| TWS-BS-3 | RWS-371-3(315MHz) | 80~120M |
| TWS-BS-3 | RWS-371F-3(315MHz) | 80~120M |
TWS-BS-4 318MHz
Frequency Range:318MHz
Modulate Mode:ASK
Circuit Shape:SAW
Data Rate:8Kbps
Supply Voltage:3~12V
Voltage:3V,Current:4.9mA
Voltage:5V,Current:8.4mA
Power Supply and All Input / Output Pins:-0.3 to 12.0V
Non-Operating Case Temperature:-10 to +70℃
Soldering Temperature:230℃ ( 10 Seconds)
Simple To Apply with Low External Count
High Sensitivity Passive Design.
| Rating | Value | Unit |
| Power Supply and All Input/Output Pins | -0.3 ~ +12.0 | V |
| Non-Operating Case Temperature | -10 ~ +70 | ℃ |
| Soldering Temperature (10 seconds) | 230 | ℃ |
| Parameter | Min | Typ | Max | Unit |
| Operating Frequency (±250KHz) | 317.700 | 318.000 | 318.300 | MHz |
| Data Rate | 8 | Kbps | ||
| CurrentConsumption | 8 | mA | ||
| Output Power | 32 | mW | ||
| Operating Voltage | 3 | 12 | VDC | |
| Operating Ambient Temperature | -10 | +70 | ℃ |
| Transmitter | Receiver | Distance |
|---|---|---|
| TWS-BS-4 | RWS-375-4(318MHz) | 80~120M |
| TWS-BS-4 | RWS-374-4(318MHz) | 80~120M |
| TWS-BS-4 | RWS-371-4(318MHz) | 80~120M |
| TWS-BS-4 | RWS-371F-4(318MHz) | 80~120M |
TWS-BS-5 418MHz
Frequency Range:418MHz
Modulate Mode:ASK
Circuit Shape:SAW
Data Rate:8Kbps
Supply Voltage:3~12V
Voltage:3V,Current:4.9mA
Voltage:5V,Current:8.4mA
Power Supply and All Input / Output Pins:-0.3 to 12.0V
Non-Operating Case Temperature:-10 to +70℃
Soldering Temperature:230℃ ( 10 Seconds)
Simple To Apply with Low External Count
High Sensitivity Passive Design.
| Rating | Value | Unit |
| Power Supply and All Input/Output Pins | -0.3 ~ +12.0 | V |
| Non-Operating Case Temperature | -10 ~ +70 | ℃ |
| Soldering Temperature (10 seconds) | 230 | ℃ |
| Parameter | Min | Typ | Max | Unit |
| Operating Frequency (±250KHz) | 417.700 | 418.000 | 418 .300 | MHz |
| Data Rate | 8 | Kbps | ||
| CurrentConsumption | 8 | mA | ||
| Output Power | 32 | mW | ||
| Operating Voltage | 3 | 12 | VDC | |
| Operating Ambient Temperature | -10 | +70 | ℃ |
| Transmitter | Receiver | Distance |
|---|---|---|
| TWS-BS-5 | RWS-375-5(418MHz) | 80~120M |
| TWS-BS-5 | RWS-374-5(418MHz) | 80~120M |
| TWS-BS-5 | RWS-371-5(418MHz) | 80~120M |
| TWS-BS-5 | RWS-371F-5(418MHz) | 80~120M |
TWS-BS-6 433.92MHz
Frequency Range:433.92MHz
Modulate Mode:ASK
Circuit Shape:SAW
Data Rate:8Kbps
Supply Voltage:3~12V
Voltage:3V,Current:4.9mA
Voltage:5V,Current:8.4mA
Power Supply and All Input / Output Pins:-0.3 to 12.0V
Non-Operating Case Temperature:-10 to +70℃
Soldering Temperature:230℃ ( 10 Seconds)
Simple To Apply with Low External Count
High Sensitivity Passive Design.
| Rating | Value | Unit |
| Power Supply and All Input/Output Pins | -0.3 ~ +12.0 | V |
| Non-Operating Case Temperature | -10 ~ +70 | ℃ |
| Soldering Temperature (10 seconds) | 230 | ℃ |
| Parameter | Min | Typ | Max | Unit |
| Operating Frequency (±250KHz) | 433.620 | 433.920 | 434.200 | MHz |
| Data Rate | 8 | Kbps | ||
| CurrentConsumption | 8 | mA | ||
| Output Power | 32 | mW | ||
| Operating Voltage | 3 | 12 | VDC | |
| Operating Ambient Temperature | -10 | +70 | ℃ |
| Transmitter | Receiver | Distance |
|---|---|---|
| TWS-BS-6 | RWS-434N-6(433.92MHz) | 300M |
| TWS-BS-6 | RWS-375-6(433.92MHz) | 80~120M |
| TWS-BS-6 | RWS-374-6(433.92MHz) | 80~120M |
| TWS-BS-6 | RWS-371-6(433.92MHz) | 80~120M |
| TWS-BS-6 | RWS-371F-6(433.92MHz) | 80~120M |
