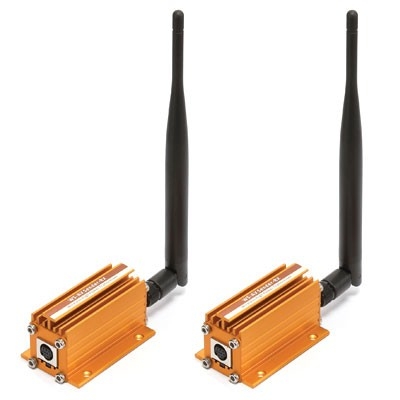

APPEARANCE
產品外觀
FEATURES
產品特色
SPECIFICATION
產品規格
2.4GHz無線自動跳頻技術、不易受干擾
加密技術、安全性高
無線同步傳輸影像及聲音
傳輸距離最長,可達 500公尺(直線無障礙)
每秒最高可達25張(720 *480)
純數位化,影像清晰、不失真、傳輸訊號穩定、穿透力強
隨插即用,不需安裝軟體,操作方便
支援PAL/NTSC影像傳輸
特製天線,確保訊號傳輸穩定性
不受有線環境之限制,輕鬆解決拉線不易的困擾
現代化金屬質感設計,與任何具有 AV 輸出的裝置皆能完美結合,
例如有線電視機上盒、安全監控系統、VCD、DVD、DVR、電視、互動式網路電視、個人電腦、衛星電視機上盒、數位電視機上盒、多媒體播放器、遊戲裝置、高解析度網路多媒體、系統衞星接收器…等。

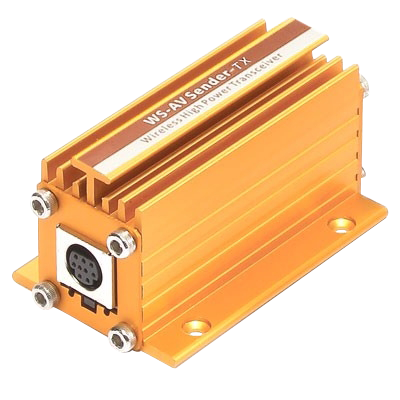

Transceiver
Video input connector:RCA
Audio input connector:RCA
Antenna connector:SMA
Consumption current:500mA
Power supply:5V 1A
Button:Pairing button
Receiver
Video output connector:RCA
Audio output connector:RCA
Antenna connector:SMA
Consumption current:500mA
Power supply:5V 1A
Button:Pairing button
LED Indicator:Power and connecting
Video output Resolution:Maximum 25 frames at D1 resolution ( 720 x 480 )
Video output Level:1±0.3V p-p 75 ohm
Latency:300ms normal
Other
Frequency:ISM 2400~2483MHz Hopping
Transmission power:Minimum 100mW
Modulation:GFSK
Maximum distance:Open space up to 1500ft
Image processor:MPEG4 encode/decode
