Home > Products > RFID Series> RFID Antenna > 902~928MHz 8dBi Tube Antenna

902~928MHz 8dBi Tube Antenna

Model:
WS-ANT925SMA-T8

This antenna is available in a wide array of types including high sensitivity, alterability, mobility...etc. The antenna has been good at designed, superior performance, and better than cord antenna. The signal and coverage are also broader.

APPEARANCE

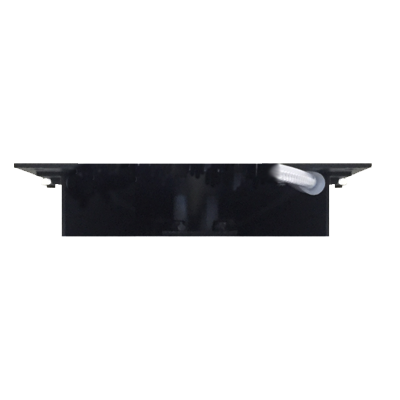

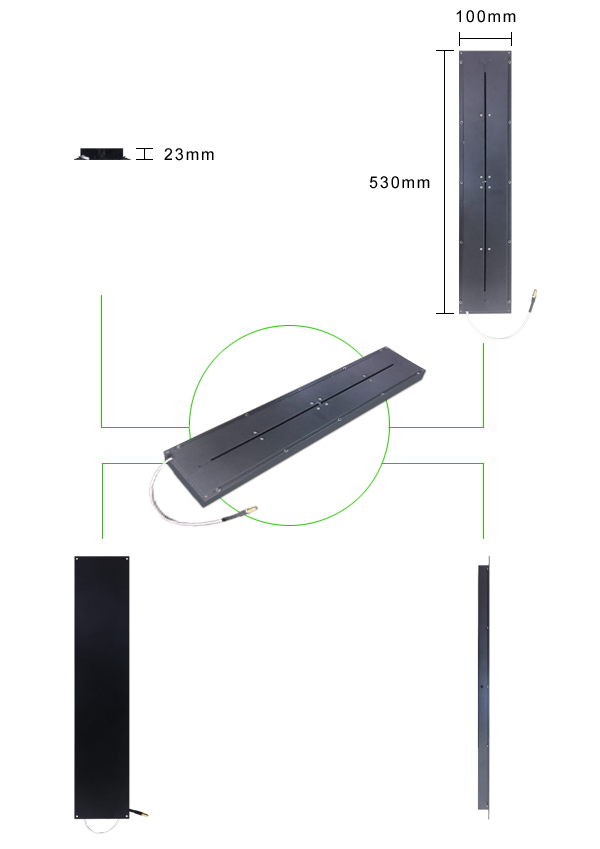

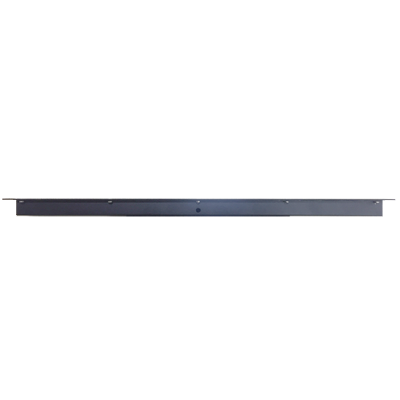

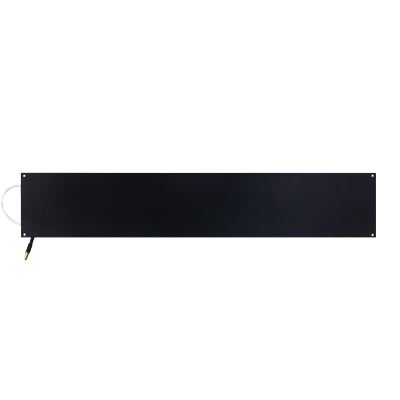

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


SPECIFICATION

Technical specifications

Electrical Specifications
Frequency902~928MHz
Gain8dBi
Beam WidthHor:100 Ver:40
VSWR≤1.5
Front-to-back ratio(dB)≥8
Impedance50
PolarizationLinear polarization
MAX.Power50
Lightning protectionDC grounding
Specifications
ConnectorSMA-Female
Connector PositionBottom out 15CM
Dimension530*100*24mm
Wind loading area≤0.2
Rated wind velocity36.9m/s
Reflector materialAluminum
Radome colorBlack
Operating temperature-40~55
